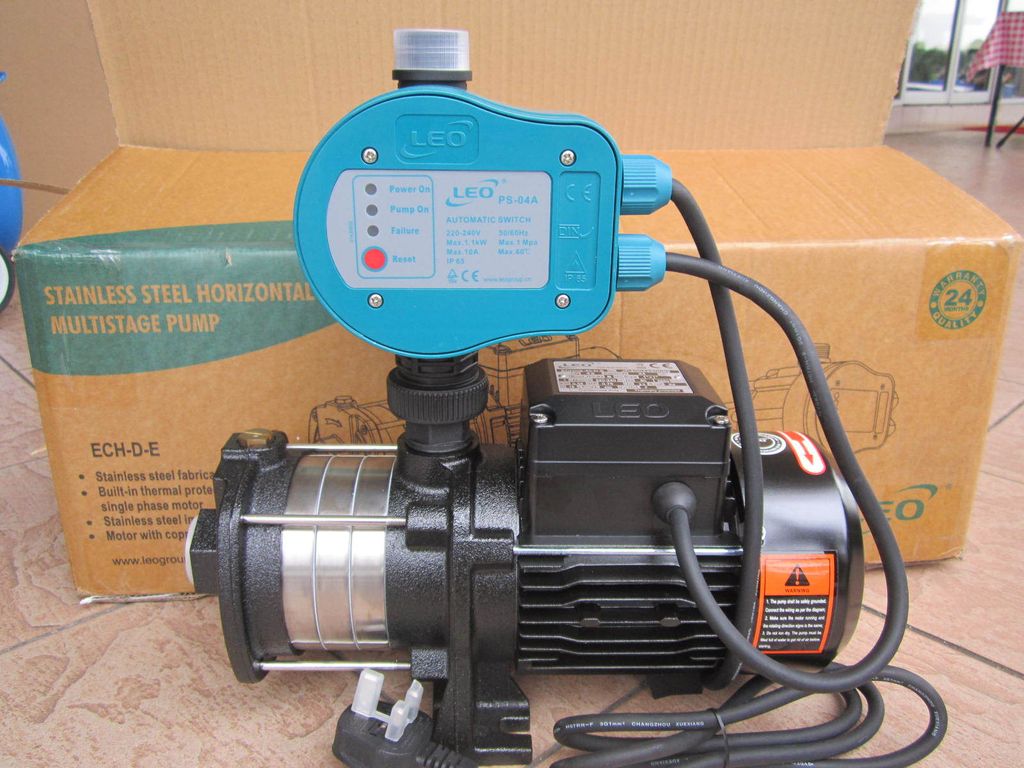

Leo 0.55kW (0.75HP) PC Horizontal Multi-Stage Water Booster Pump

RM 680.00

Leo 0.55kW (0.75HP) PC Horizontal Multi-Stage Water Booster Pump..
Model ECHM2-40DE

**Application**
The ECH-D cold water pump is applicable to household water supply, equipment support, pipeline pressurization, garden watering, vegetable greenhouse watering, fish farming and poultry raising, industrial and mining, water supply and drainage in high-rise buildings, and central air conditioner systems.

**Pump**
- AISI 304 shaft.
- Max. liquid temperature: +40℃.
- Altitude: up to 1000m.
- Max. Suction: 8m.
- Max. Inlet pressure: limited by max. Operating pressure.
- Max.operation pressure: 8 bar
-Liquid PH value: 6.5-8.5

**Motor**
- Motor with copper winding.
- Built-in thermal protector for single phase motor.
- Insulation class: F.
- Protection class: IP55.
- Max. ambient temperature: +40℃.

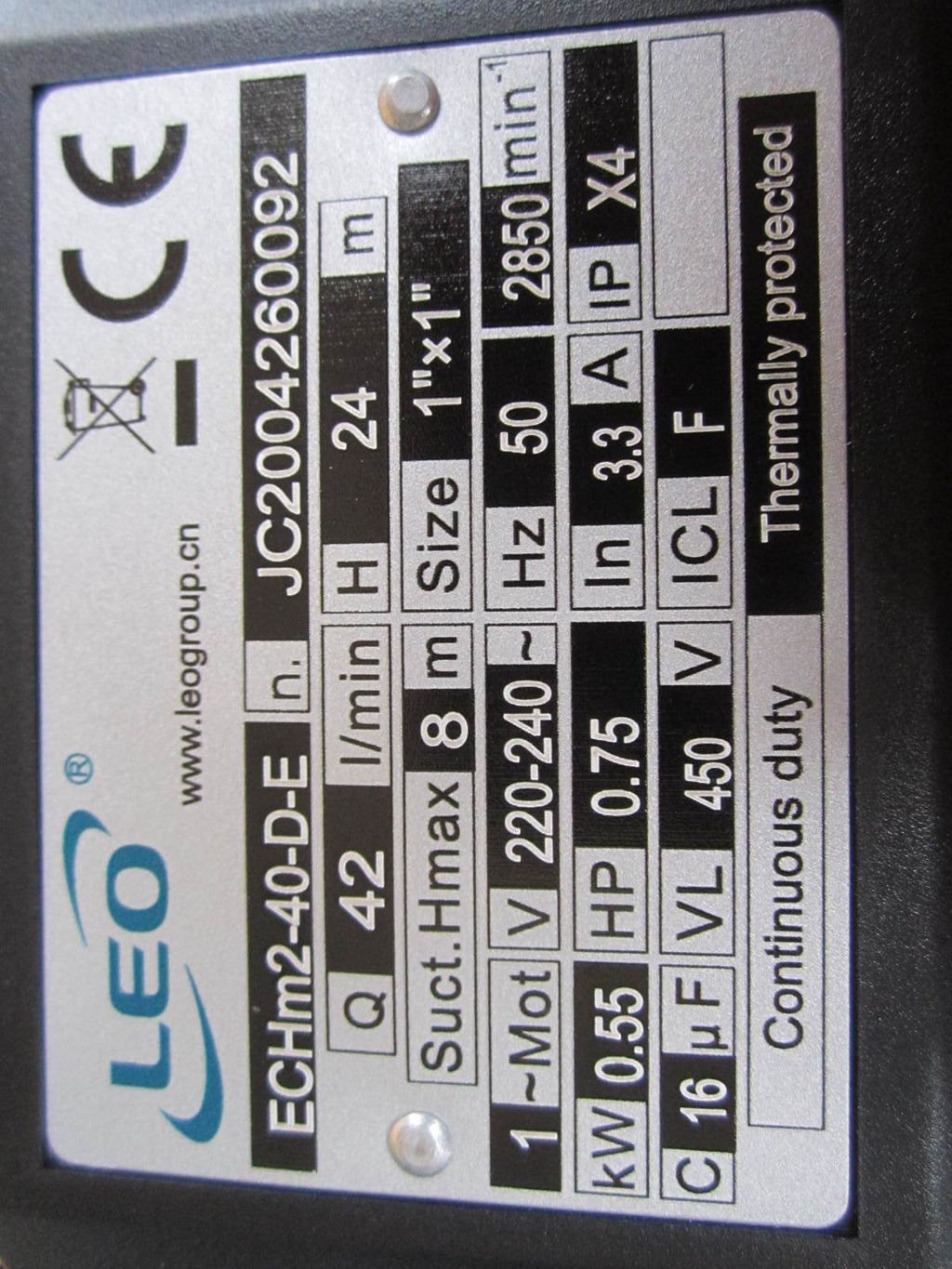

**Specifications**
Brand Leo
Model ECHM 2-40 DE
Voltage 220~240V 50Hz
Power 0.55kW (0.75HP)
Current 3.3A
Rated capacity 42L/min
Max. capacity 60L/min
Rated head 24mtr
Max. head 33mtr
Max. suction 8mtr
Max. liquid temperature +40°C
Speed 2850r/min
Capacitor 16uF/450V
Pipe size G1" x G1" (25mm x 25mm)
Protection rating IPX4
Insulation Class F
Continuous duty and thermally protected
Warranty 24 months

PRICE RM680.00..(Leo Group Pump)..
