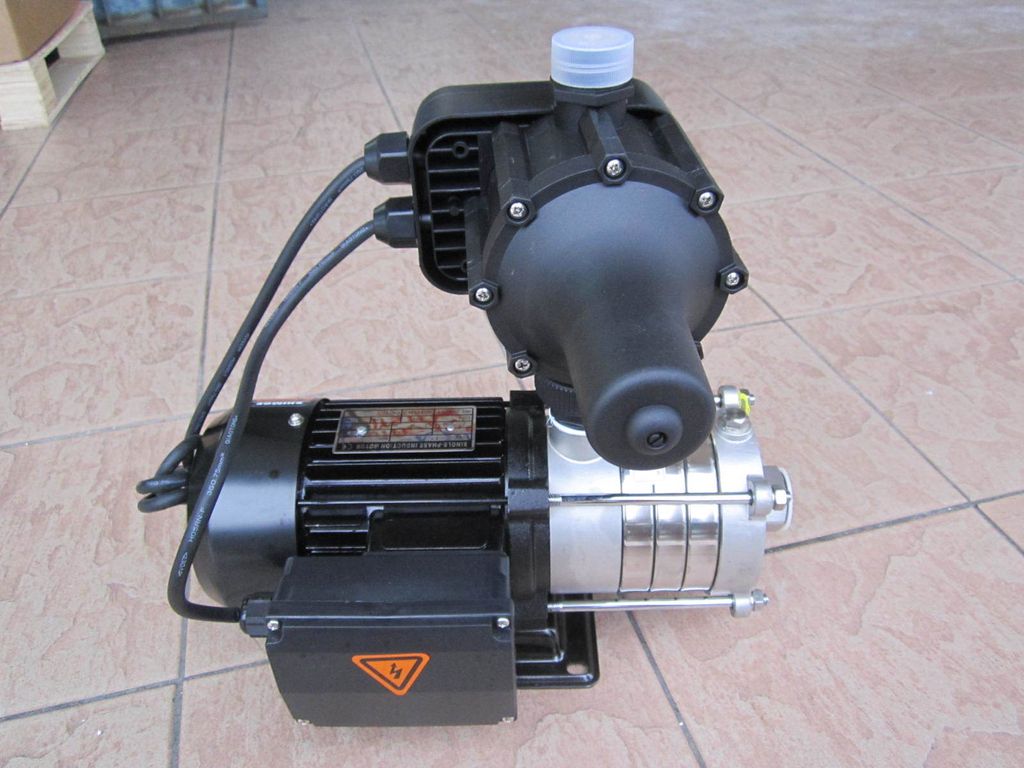

Shimge 0.55kW / 0.75Hp PC Stainless Steel Horizontal Multi-Stage Pump

Shimge 0.55kW / 0.75Hp PC Stainless Steel Horizontal Multi-Stage Pump..

Model BWJ2-4-PC

BWJ stainless steel horizontal multistage centrifugal pumps are non-self priming pumps absorbing the advanced technology from home and abroad. They are classified into two kinds: cylinder type and sectional type. They adopt horizontal motor and alloy mechanical seal, which makes the replacement more convenient. The overflowing part of the pump is made of stainless steel 304, applicable for light-corrosion medium. Relying on the high efficiency, energy saving performance, reliable quality, wide usable range, our products receive the great popularity after being launched.

.Temperature range of medium: Normal type 0°C +68°C , hot water type 0°C +120°C

.Maximum ambient temperature: +40 °C

.Maximum working pressure: 10 bar

.When the density or viscosity of the transmission medium exceeds that of water, it is necessary to select a driving motor of high-power.

.pH: 6.5 to 8.5

.Full-enclosed and ventilating two-pole standard motor

.Protection class: IP55

.Insulation class: F

.Standard voltage (50Hz): Single phase 240V

**Applications**

.Industrial cleansing

.Environmental application

.Air conditioner system

.Aquaculture

.Cooling System

.Water processing(Water purification)

.Fertilization/measuring system

.Other special applications

**Specifications**

Brand Shimge

Model BWJ2-4-PC

Voltage 220-240V

Frequency 50Hz

Power 0.55kW (0.75HP)

Current 2.9A

Speed 2850r/min

Rated Flow 2.0m3/hour (33L/min)

Max. Flow 3.5m3/hour (58L/min)

Rated Head 29mtr

Max. Head 36mtr

Max.Pressure 5.5bar

Motor Power 0.55kW (0.75HP)

Max.Efficiency 45%

Inlet G 1" (25mm)

Outlet G 1" (25mm)

Noise Level 57 dB(A)

Insulation Class F

Protection IP55

Continuous duty

Weight 12.8kgs

Warranty 24 months

PRICE RM920.00..(Shimge for better life)..
