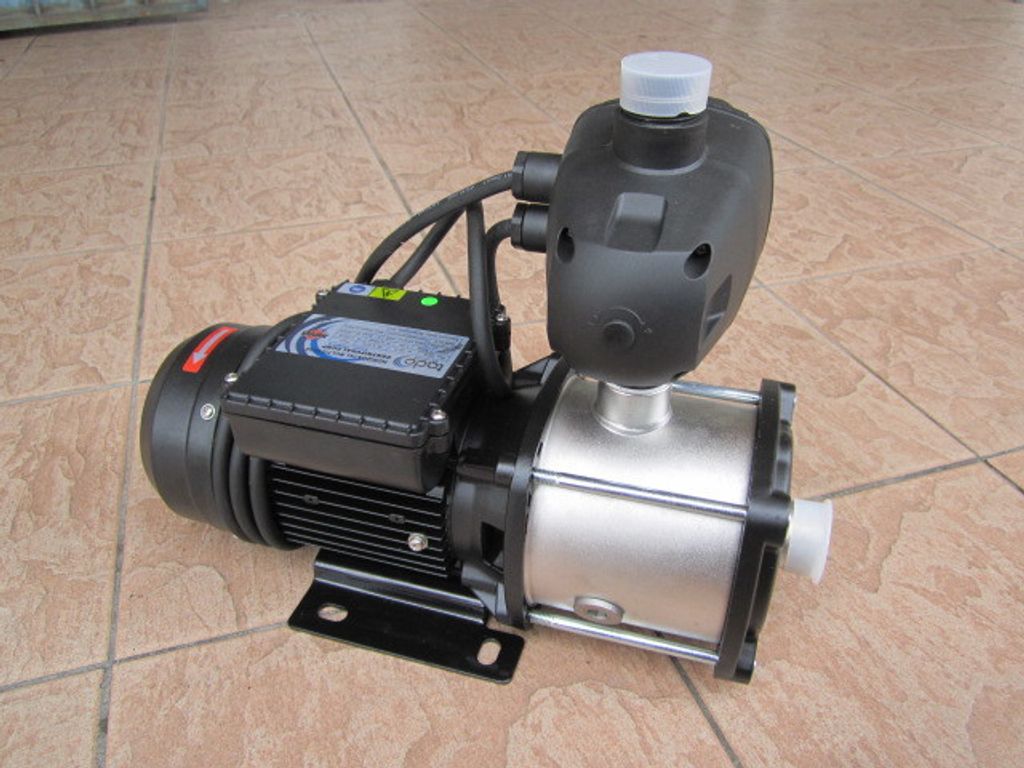

Tado 0.75HP Automatic Horizontal Multi-Stage Centrifugal Pump

RM 820.00

Tado 0.75HP Automatic Horizontal Multi-Stage Centrifugal Pump..

Model YCM3-5/YPC-7


Low Noise Operation with 304 Stainless Steel Shaft


**Application**

.Water treatment (water purification), industrial cleaning machine

.Floors of pressurized water supply

.High building boosting, water supply, garden sprinkler

.Air-conditioning and cooling system

.Aquaculture and other uses


**Features**

.Horizontal construction, a threaded inlet and outlet for standard installation

.With high quality mechanical seal, different friction couples will be selected for different medium

.Stainless steel 304 for casing and NORYL for guide blade and impeller

.Motor mounted with T1 thermal protector

.Insulation class F, protection IP54

.100% copper wired motor


**Specifications**

Model YCM3-5/YPC-7

Input voltage 220-240V

Frequency 50Hz

Phase single

Power 0.55kW (0.75HP)

Current 3.8A

Speed 2900rpm

Max. capacity 59L/min

Max. head 50mtr

Max. pressure 8bar

Max. water temperature 60 Celsius

Connection inlet / outlet 1" x 1" (25mm x 25mm)

Pump body stainless steel

Impeller Noryl

Mechanical seal stainless steel

Heavy duty continuous work

Motor housing aluminium

Shaft stainless steel (SUS304)

Insulation class F

Protection IP54

Cooling external ventilation

Weight 11kg

Warranty 1 years

**Installation charges within Klang Valley area - RM600.00**


PRICE RM820.00*..(Tado reliable water pump)..

*Price are inclusive 6% GST.
