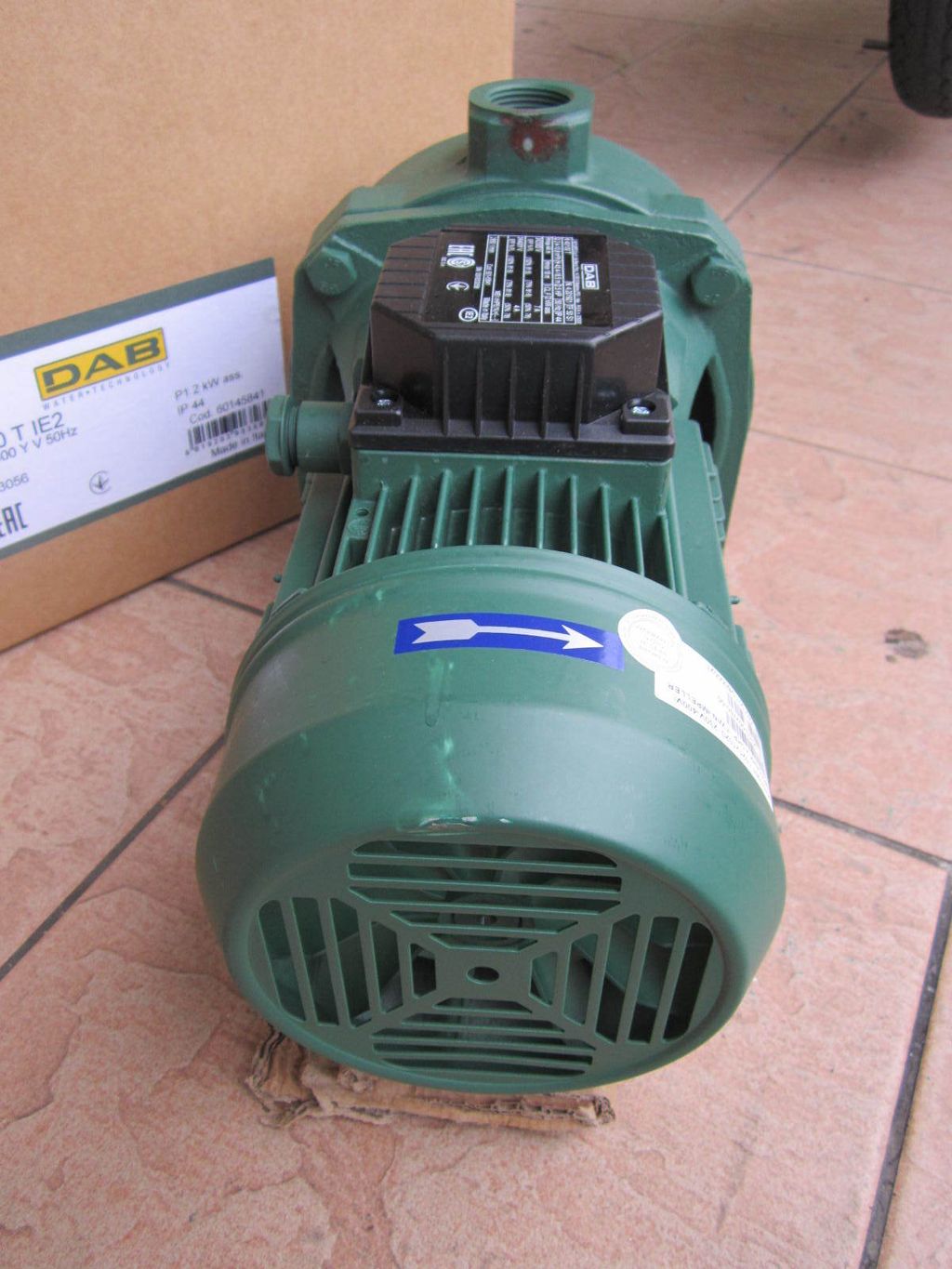

DAB K40/100T (3-Phase) Twin-Impeller Centrifugal Pump 2.5Hp

DAB K40/100T (3-Phase) Twin-Impeller Centrifugal Pump 2.5Hp..

Model K40/100T

K 40/100 - TWIN-IMPELLER CENTRIFUGAL ELECTRIC PUMPS FOR WATER SUPPLY IN DOMESTIC, CIVIL, AND

INDUSTRIAL ENVIRONMENTS

**APPLICATIONS**

.Twin-impeller centrifugal pump designed for the realisation of pressurization units in water systems and filling of pressure vessels.

.Suitable for sprinkler systems and other general water supply uses.

**CONSTRUCTION FEATURES OF THE PUMP**

.Pump body and motor support in cast iron.

.Technopolymer impeller.

.Carbon/ceramic mechanical seal.

**CONSTRUCTION FEATURES OF THE MOTOR**

.Closed asynchronous type, external ventilation cooling.

.Rotor running on permanently lubricated ball bearings, oversized to ensure low noise and durability.

.Standard built-in thermo-amperometric protection. Capacitor permanently fitted on single phase versions.

.For the protection of the three-phase motor, we recommend the use of remote overload cut-outs, in compliance with current local regulations.

.Construction according to CEI 2-3.

.IE2 motors as standard, from 0,75 kW to 5,5 kW - IE3 ≥ 7,5 kW

**TECHNICAL DATA**

Operating range: from 1,2 to 30 m3/h with head up to 97 metres.

Pumped liquid: clean, free of solids and abrasives, non-viscous, nonaggressive, non-crystallised and chemically neutral, with properties similar to water.

Liquid temperature range: K 40/100 :from -10 °C to +50 °C

Maximum ambient temperature: +40°C

Maximum operating pressure: K 40/100 :6 bar (600 kPa)

Protection class: IP 44 per K 40/100

Protection class at the terminal board: IP 55

Insulation class: F

Standard voltage: three-phase 230-400 V / 50 Hz up to 4 kW included - 400 V Δ 50 Hz from 5,5 kW

Installation: fixed, horizontal or vertical position, provided that the motor is always above the pump.

Special executions on requests: alternative voltages and frequencies.

**Specifications**

Brand DAB

Model K40/100T

Voltage 3x230-400V 50Hz

3-Phase

Power P1 max. 2.0kW

Power P2 nominal 1.85kW (2.5HP)

Current 3x230V - 7A / 3x400V - 4A

Motor type IE 3

Speed 2580rpm

Min. head 18mtr

Max. head 44mtr

Min. flow 2.4m3/hour

Max. flow 10.8m3/hour

Pipe inlet G 1-1/2"

Pipe outlet G 1"

Insulation class F

Protection rating IP 44

Weight 22kg

Made in Italy

Warranty 1 years

PRICE RM2,980.00..(DAB Water Technology)..
