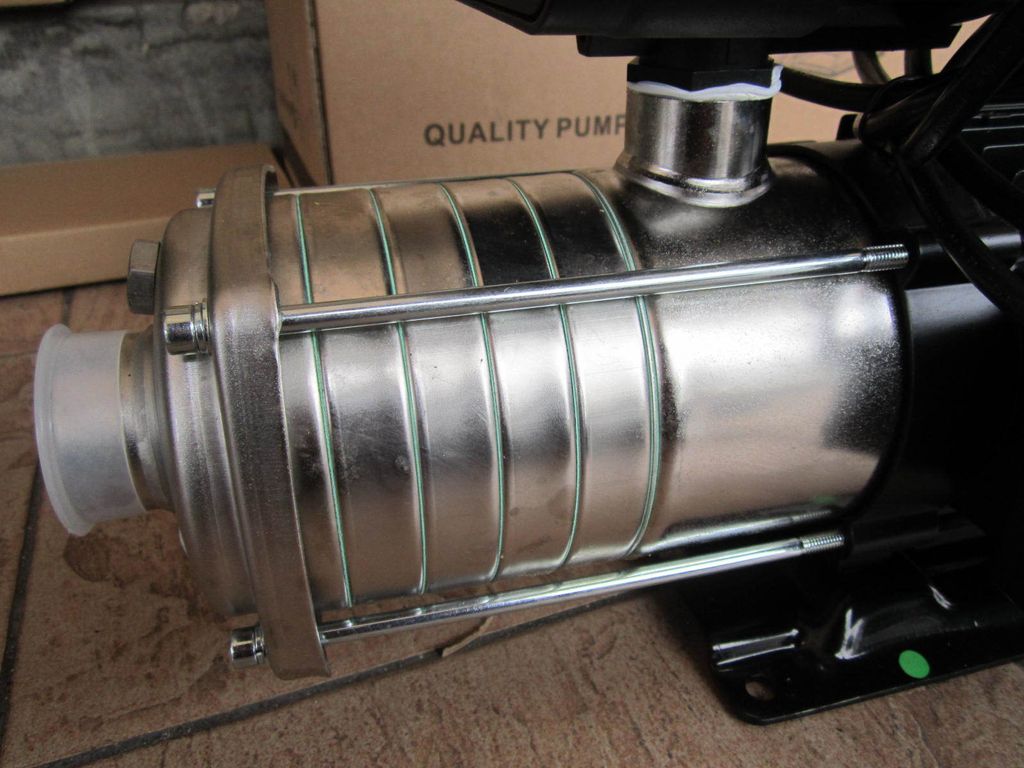

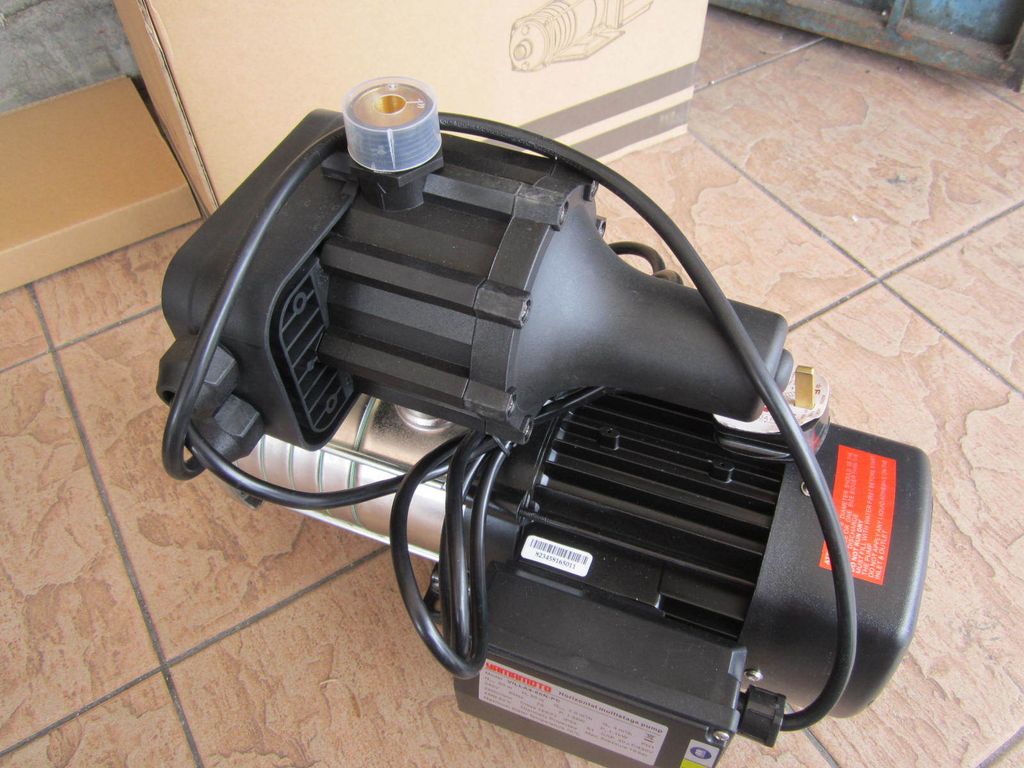

Yamamoto 1.5HP PC Stainless Steel Multi-Stage Water Booster Pump

Yamamoto 1.5HP PC Stainless Steel Multi-Stage Water Booster Pump..
Model VILLA4-60N-PC

**Applications**
.Water treatment processes
.Industrial cleaners and dishwashers
.Pressure boosting systems
.Heating and cooling for industrial processes
.Air-conditioning systems, Air freshening, heater devices.
.Water supply and boosting (drinking water with light chlorinated water)
.Fertilization systems
.Domestic and household use

**Applicable Medium**
.For clean, non-flammable and non-explosive liquid without solid granules and fibers;
.Mineral water, soft water, pure water, edible vegetable oil and other light chemical mediums.
.When the liquid density or viscosity is larger than normal water, it is necessary to select a motor with higher power.
.Whether a specific liquid is suitable for the pump, it all depends on many factors, among which the most important ones are chlorine content, PH value, temperature, solvent and oil content.

**Operating conditions**
.Liquid temperature: Standard type 0-70°C
.Ambient temperature: Max.40°C
.Working pressure: Max. 10 bar
.Suitable for transport clean water, without solid particles or non-corrosive fluids

**Technical data**
Brand Yamamoto
Model VILLA4-60N-PC
Voltage 240 V 50 Hz
Single Phase (Phase 1)
Current 7 A
Power P1 (1.5 kW) / (2.0 HP)
Power P2 (1.1 kW) / (1.5 HP)
Max. flow 7.0 m3/hour (116 L/min)
Rated flow 4.0 m3/hour (66 L/min)
Max. head 60 mtr
Rated head 50 mtr
Speed 2900 rpm
Inlet size 1-1/4" (32 mm)
Discharge size 1" (25 mm)
Insulating class 155 (F)
Protection rating IP 55
Capacitor 30 uF/450 V
Max. pressure 10 bar
Max. water temperature 70 °C
Thermally protected
Weight 15 kgs
Made in Taiwan
Warranty 1 years

PRICE RM1,299.00..(Yamamoto reliable home water pump)..
