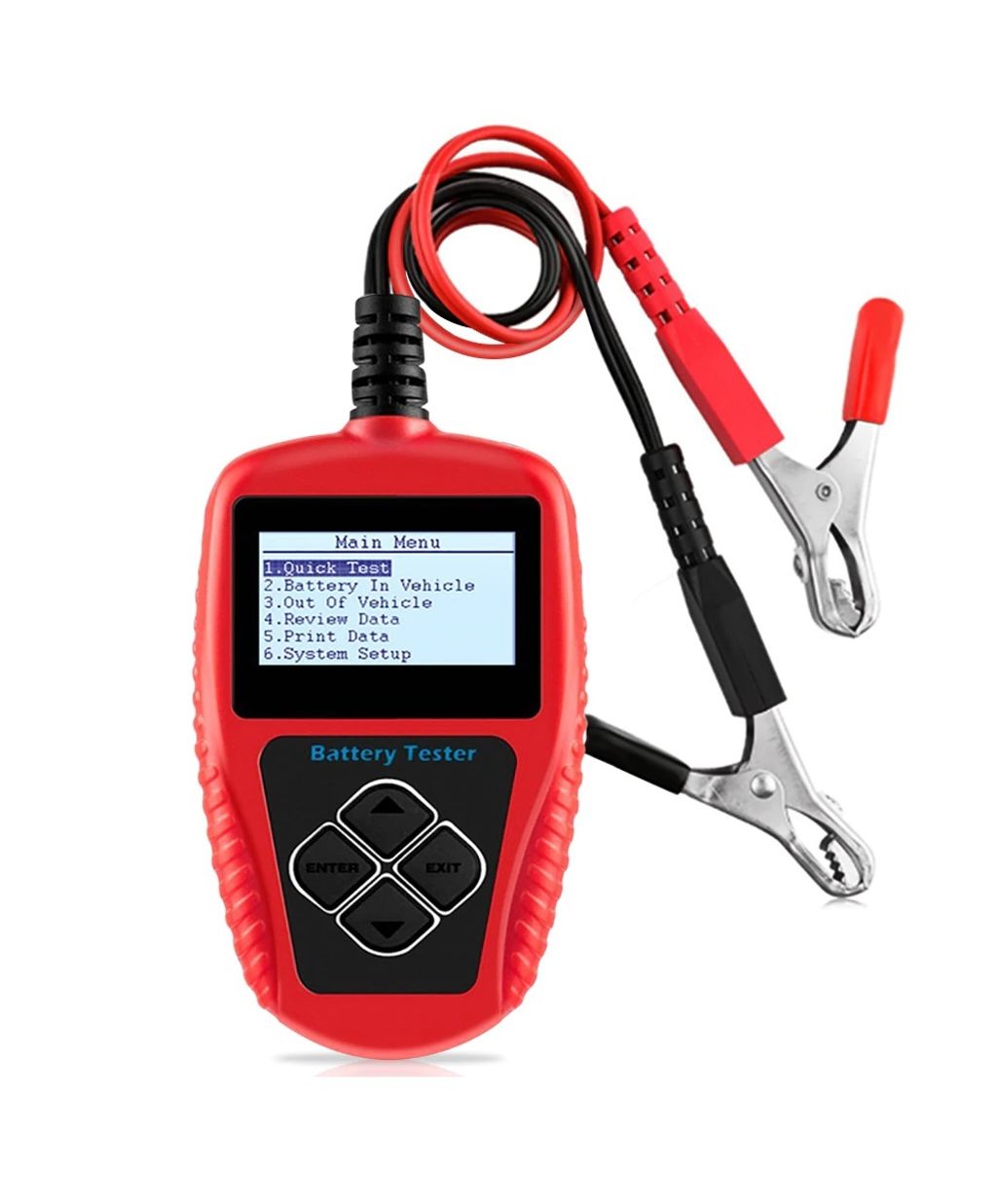

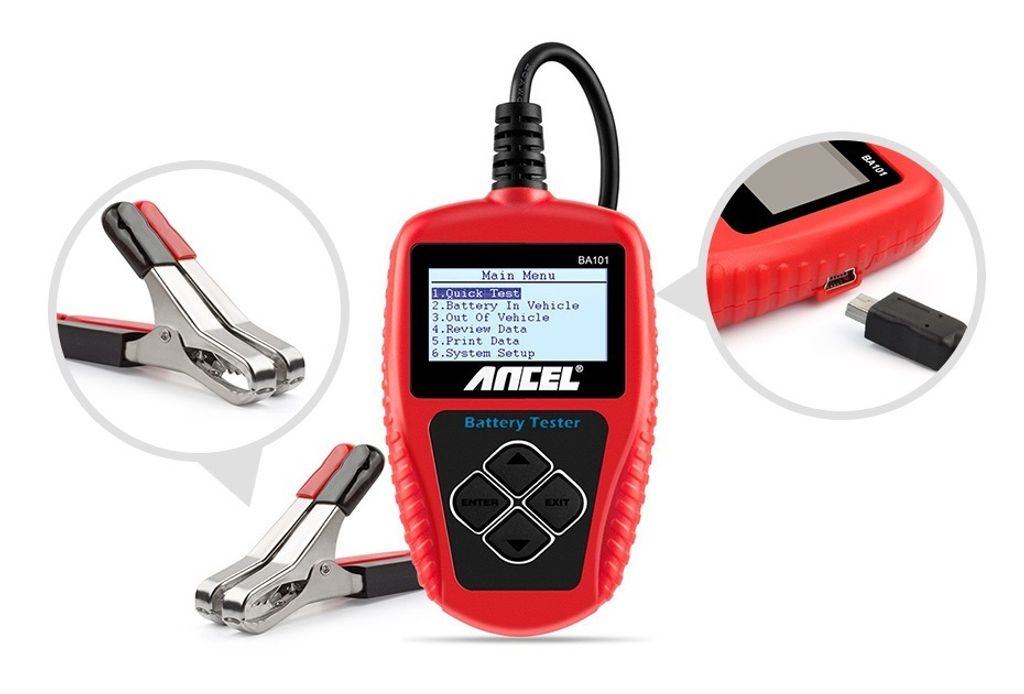

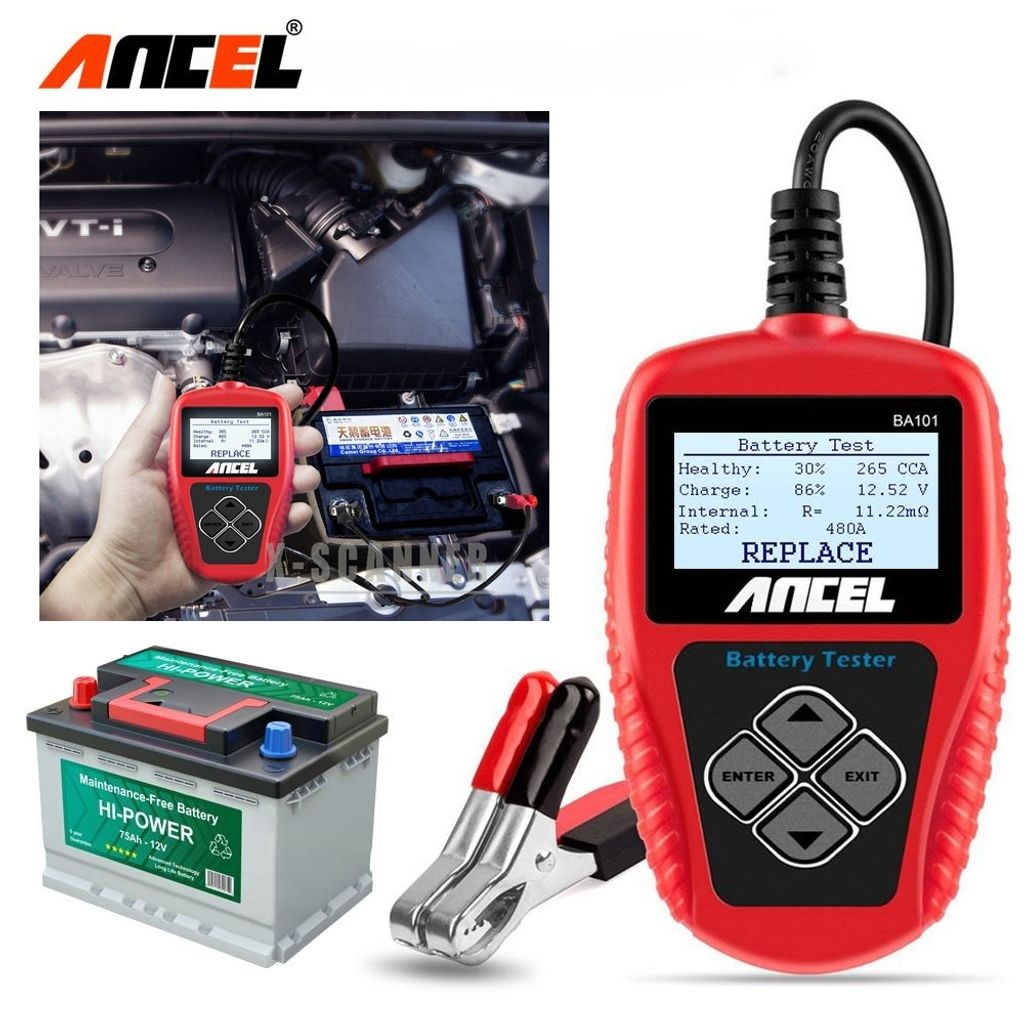

Ancel BA101 12V Car Battery Analyzer Tester

Ancel BA101 12V Car Battery Analyzer Tester..
Model BA101
Auto Battery Tester Ancel BA101 Car Battery Tester 12V Automotive Vehicle BA101 Battery Analyzer 100-2000CCA 220Ah Scanner Tools

BA101 Battery Tester adopts currently the world's most advanced conductance testing technology to easily, quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery, healthy state of the battery itself, and common fault of the vehicle starting system and charging system, which can help maintenance personnel to find the problem quickly and accurately, thus to achieve quick vehicle repair.

**Quick Test**
It can make sure the battery status, including voltage, CCA, electronic resistance, rated CCA, charging value, healthy value and testing result in one second. Once input the AH value—battery rated capacity, which is marked in the label of the battery.

Press UP/DOWN key to select the Quick test, then press ENTER key to confirm.

Input the rated battery capacity—xx AH, in general, the battery capacity for 12V vehicle is above 30AH.

Then press enter key, the testing result will show one of these, as below Battery test result includes 5 tys as following:

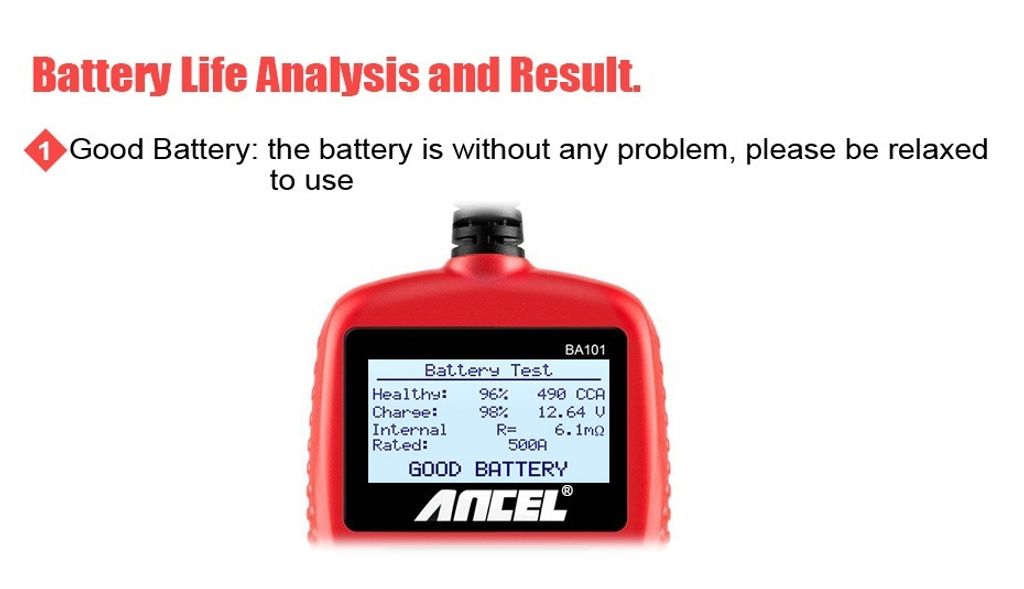

.Good Battery: The battery is without any problem, please be relaxed to use

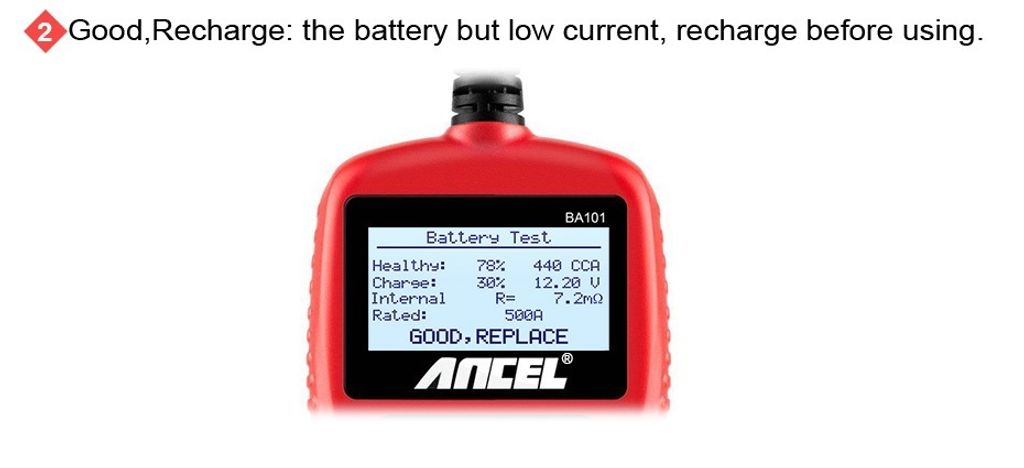

.Good, Recharge: Good battery but low current, recharge before using.

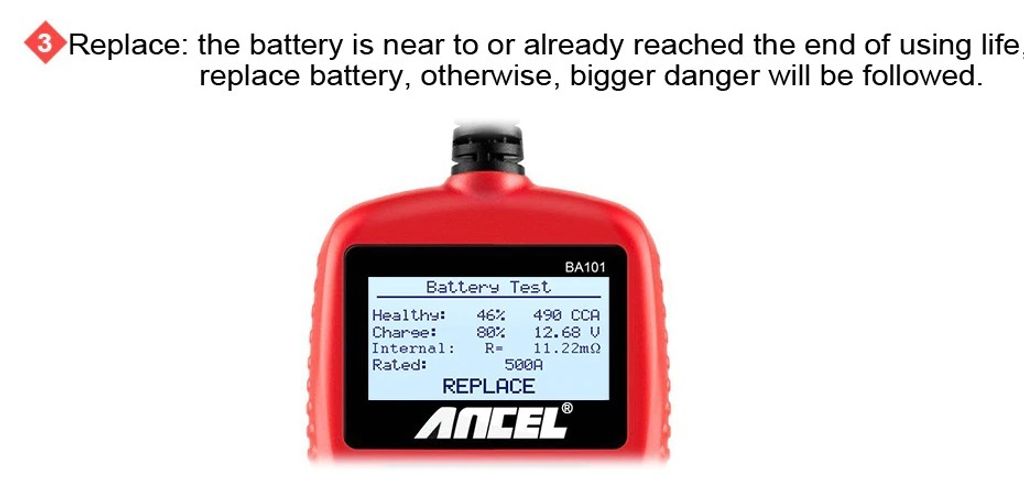

.Replace: The battery is near to or already reached the end of the using life, replace battery, otherwise, bigger danger will be followed.

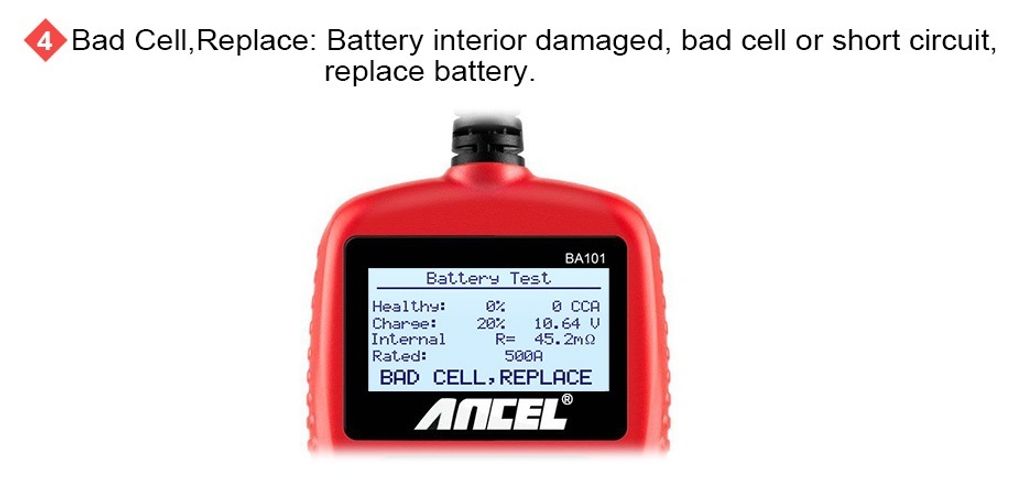

.Bad Cell, Replace: Battery interior damaged, bad cell or short circuit, replace battery.

**Features**
Ancel BA101 Car Battery Tester 12V Digital Analyzer 2000CCA 220AH BAD Cell Test Car Tools
1. Accurate tester result in miliseconds (tolerance ±15)
2. BA101 can test CCA100-2000, 30-220Ah, which is the highest CCA in the market

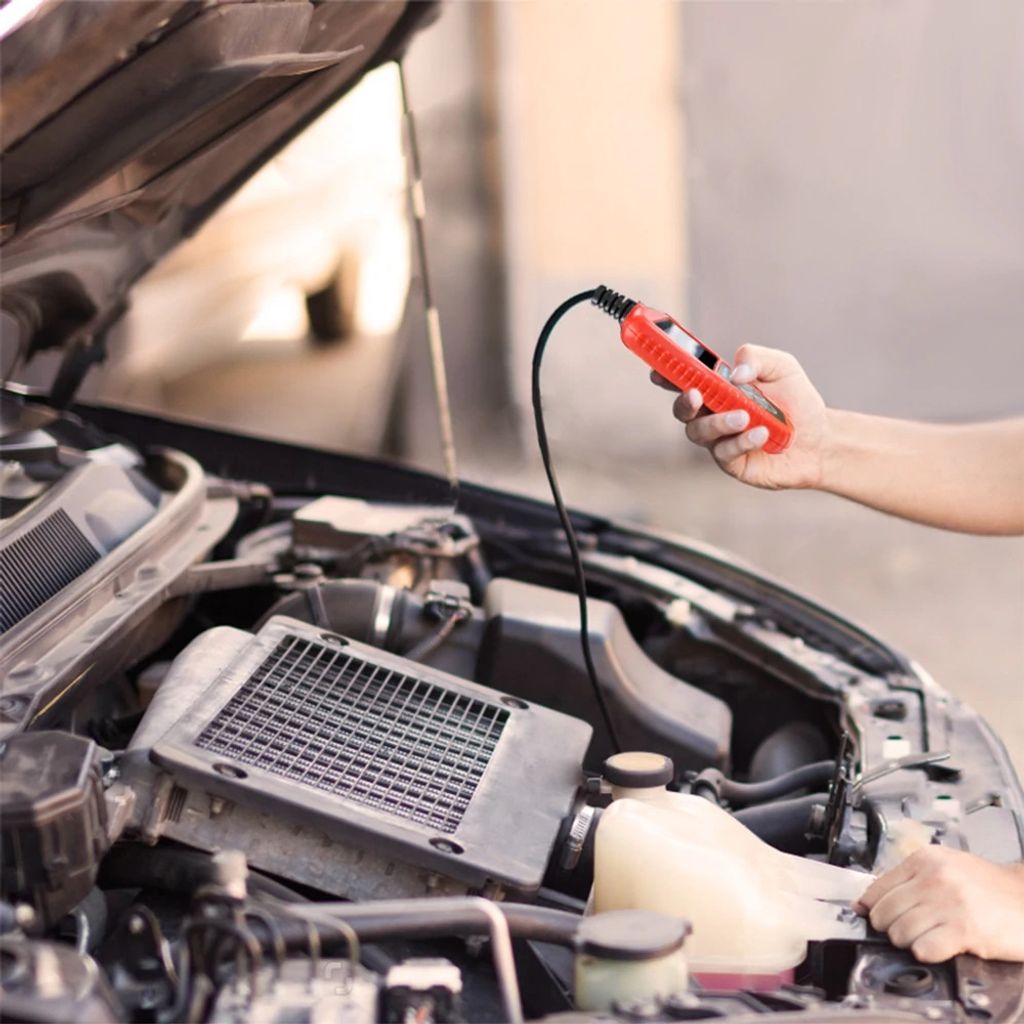

3. Test batterues on and off the vehicle
4. Battery life analysis, result : good or replace
5. Test result based on JIS, EN, DIN, SAE and IEC standards.
6. Easily read LCD screen display
7. Quick test - input battery volume (AH), then it can show the battery status.

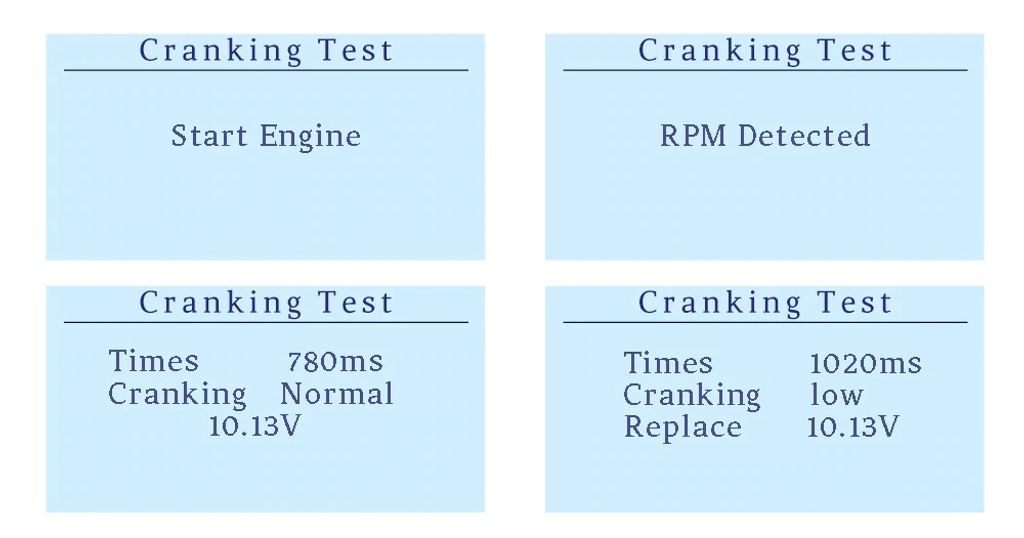

8. vehicle cranking system test - cranking time, voltage and status.

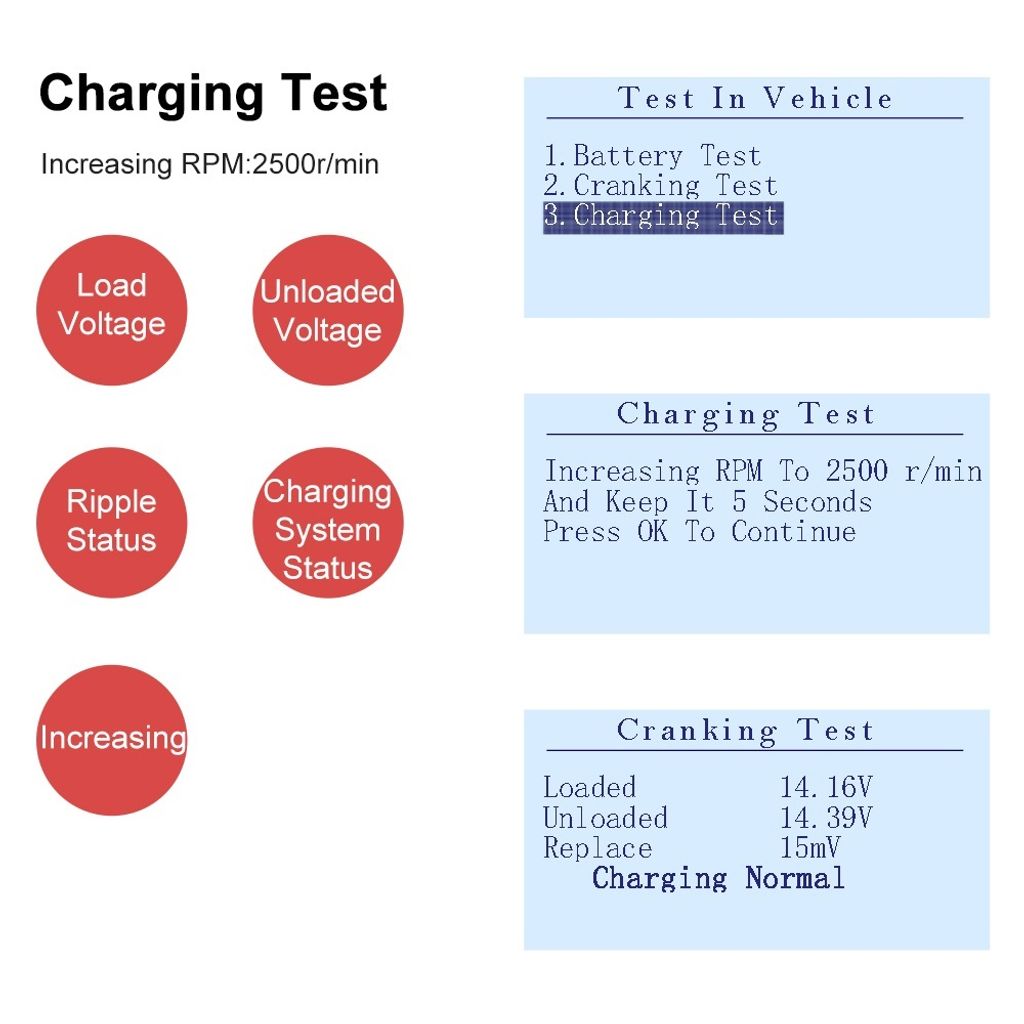

9. vehicle charging system test - load voltage, unloaded voltage, ripple status and charging system status.

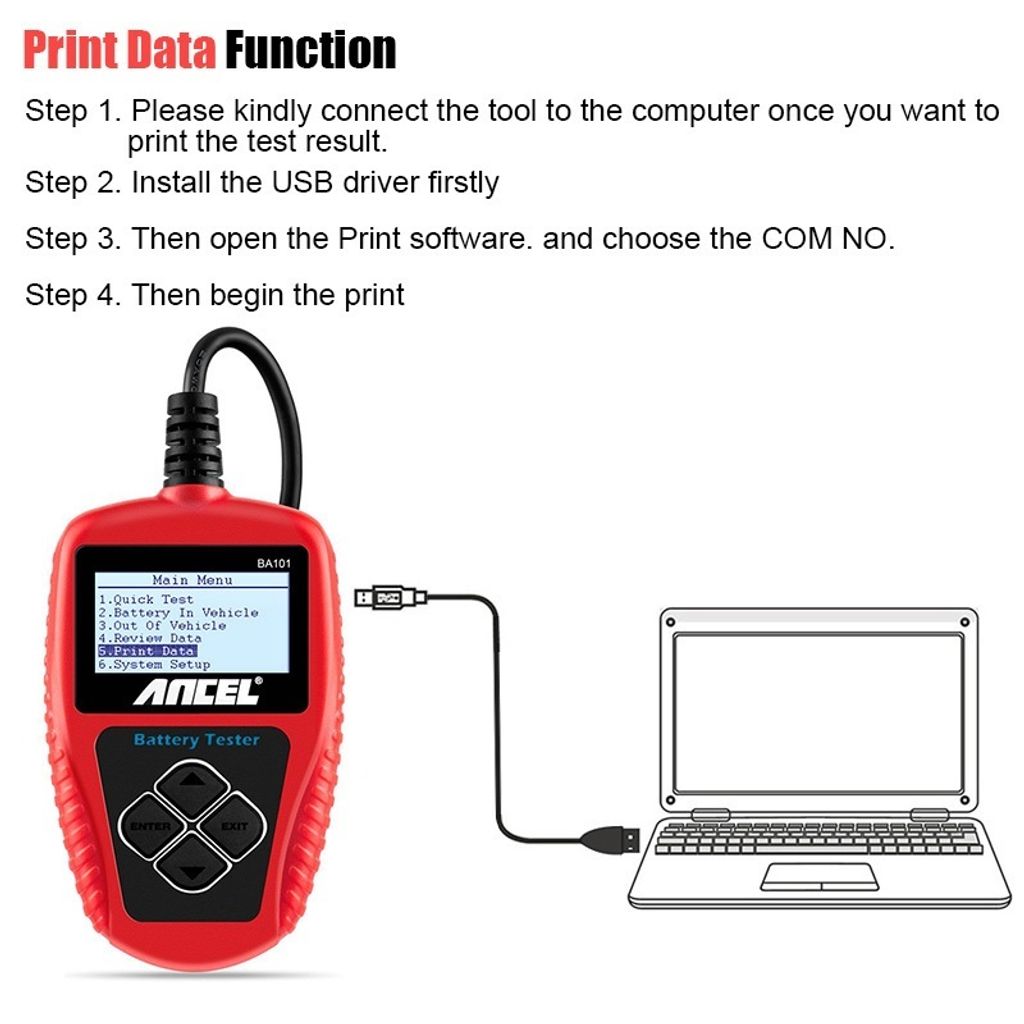

10. Store the testing result, print function

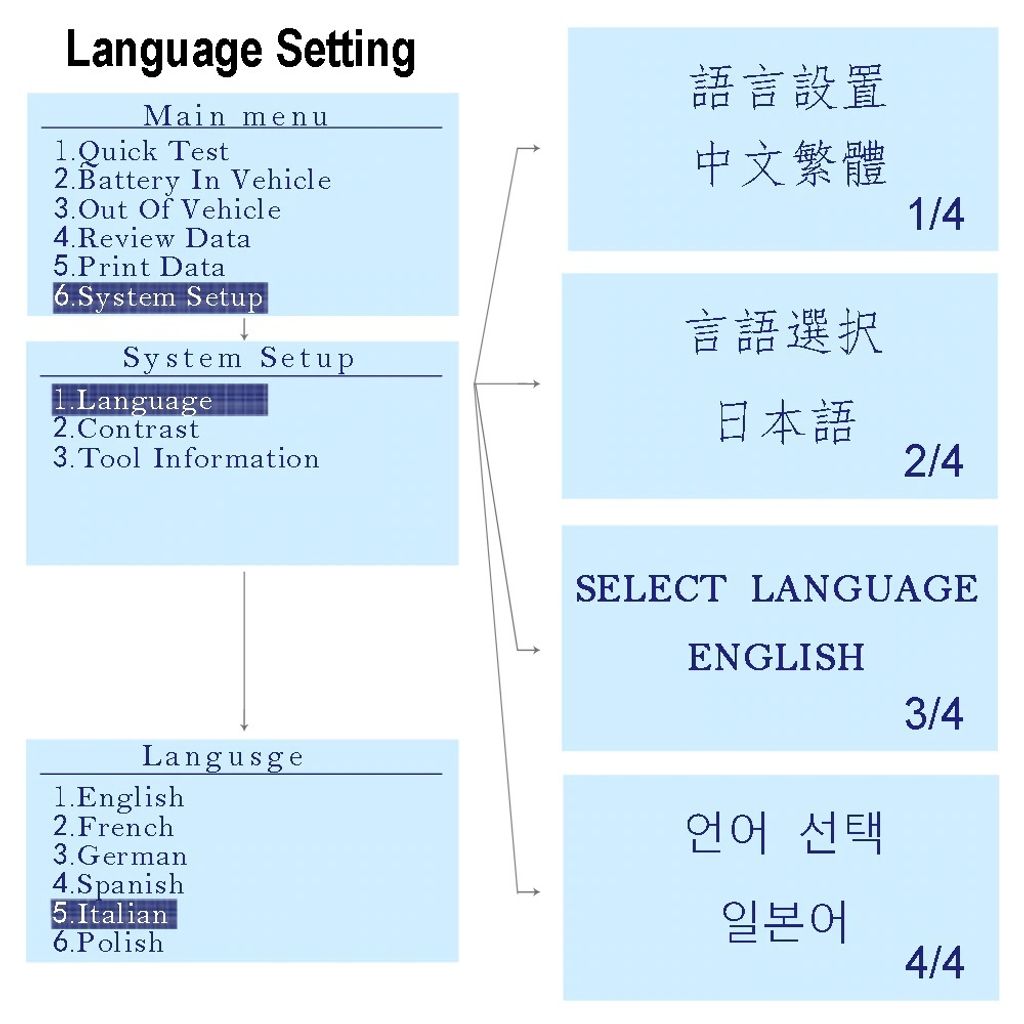

Two Built-in Multi-Language Version
European Version: English, Spanish, French, German, Italian, Polish
Asian Version: English Japanese, Korean, Chinese

**Specifications**
Model Ancel BA101
System voltage 12 Volts
Input voltage range 9V~15V
Power requirements no internal batteries required. Power on when hooked up during testing.

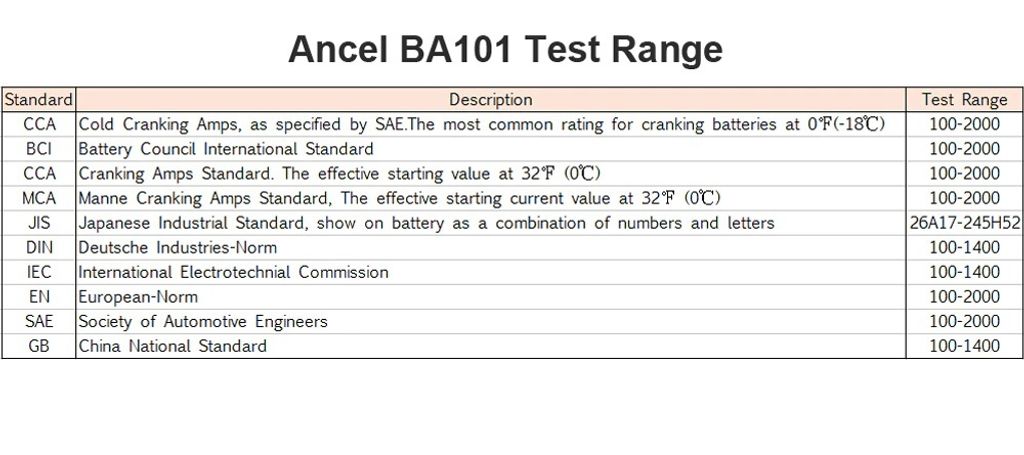

Testing range 100 ~ 2000 CCA, 100 ~ 1000 DIN, 100 ~ 1000 IEC, 100 ~ 1700 EN
AH range 30-220AH
Test result:
.Test Result Good or Replace
.Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating
.Internal resistance value (m)
.Life in percentage (%)
.Cranking system
.Charging system
Display backlit LCD screen
Weight 0.5kg
Warranty 12 months
*Free shipping to whole Malaysia*

PRICE RM299.00..(Ancel technology diagnostic equipment)..
