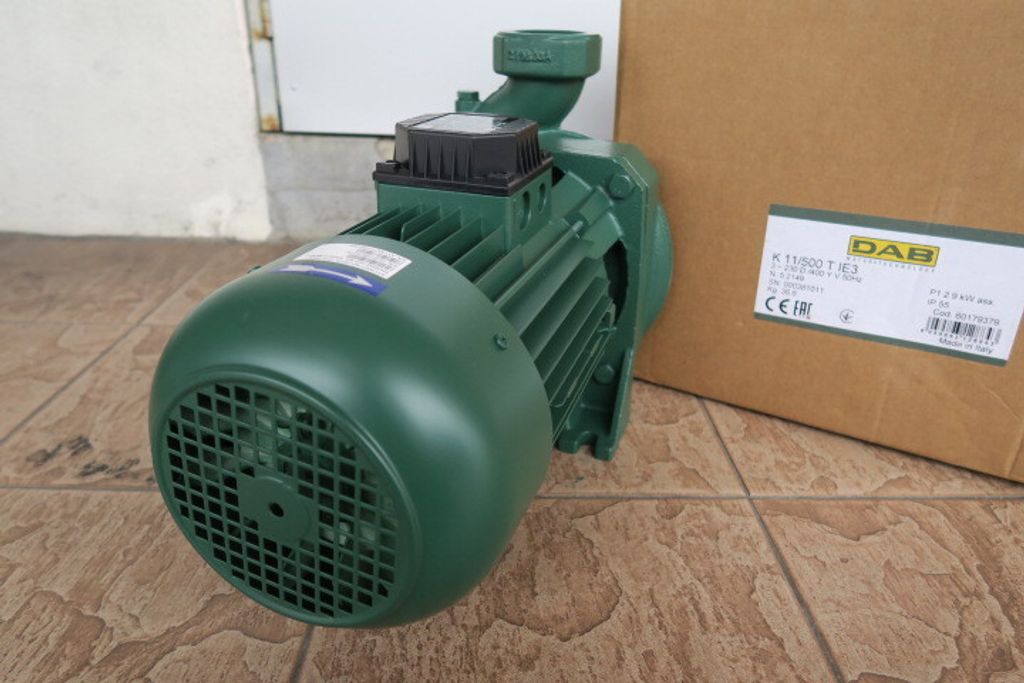

DAB K11/500T (2.20kW / 3.0Hp) 3-Phase 2.5 x 2-inch Single-Impeller Pump

DAB K11/500T (2.20kW / 3.0Hp) 3-Phase 2.5 x 2-inch Single-Impeller Pump..

Model K 11/500T IE3

**APPLICATIONS**

.Single-impeller centrifugal pump suitable for domestic, civil, industrial and agricultural systems, and for decanting, mixing and irrigation uses.

**CONSTRUCTION FEATURES OF THE PUMP**

.Pump body and motor support in cast iron.

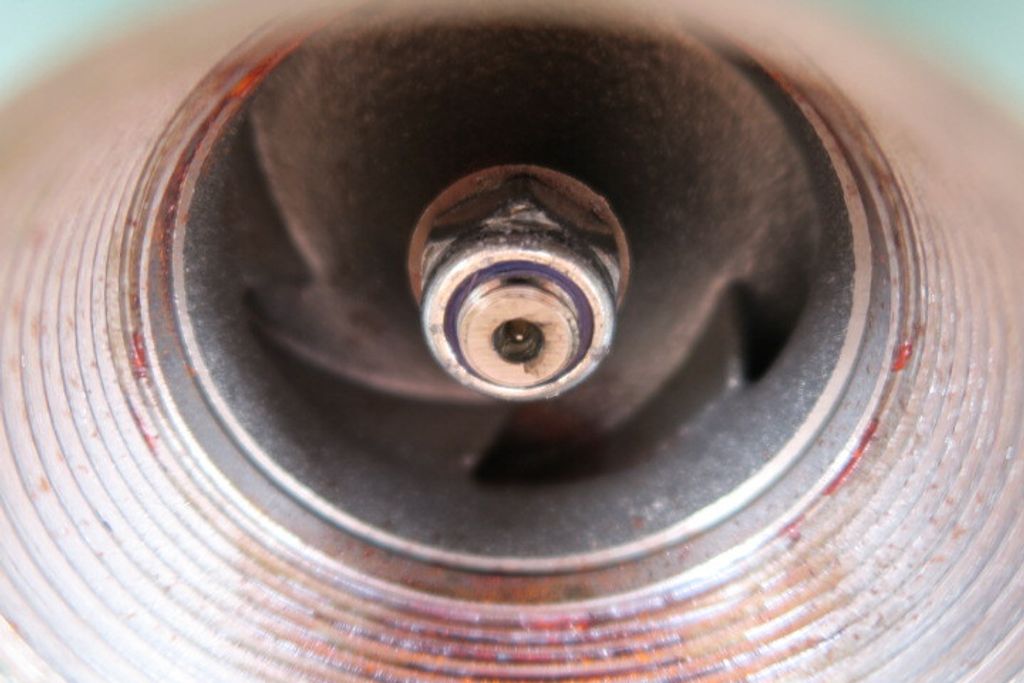

.Technopolymer or cast iron impeller.

.Carbon/ceramic mechanical seal.

**CONSTRUCTION FEATURES OF THE MOTOR**

.Closed asynchronous type, external ventilation cooling.

.Rotor running on ball bearings, oversized to ensure low noise and durability.

.Standard built-in thermo-amperometric protection. Capacitor permanently fitted on single phase versions.

.For the protection of the three-phase motor, we recommend the use of remote overload cut-outs, in compliance with current local regulations.

.Construction according to CEI 2-3.

.IE2 motors as standard, from 0,75 kW to 5,5 kW - IE3 ≥ 7,5 kW

**Specifications**

Brand DAB

Model K 11/500T IE3

Type single-impeller electric pump

Power input 3x230-400V 50Hz

3-Phase

P1 max. 2.9kW

P2 nominal 2.20kW / 3.0Hp

Current 9.3-5.4A

Motor type IE3

Speed 2950rpm

Flow rate 10~39m3/hour / 167~650L/min

Max. head 25m

Inlet size 2-1/2-inch

Outlet size 2-inch

Pumped liquid temperature range from -10 °C to +50°C

Maximum ambient temperature +40°C

Protection IP 55

Insulation Class F

Packing dimension 512 x 286 x 345mm

Weight 34.2kg

Made in Italy

Warranty 12 months

PRICE RM4,499.00..(DAB Water Technology)..
