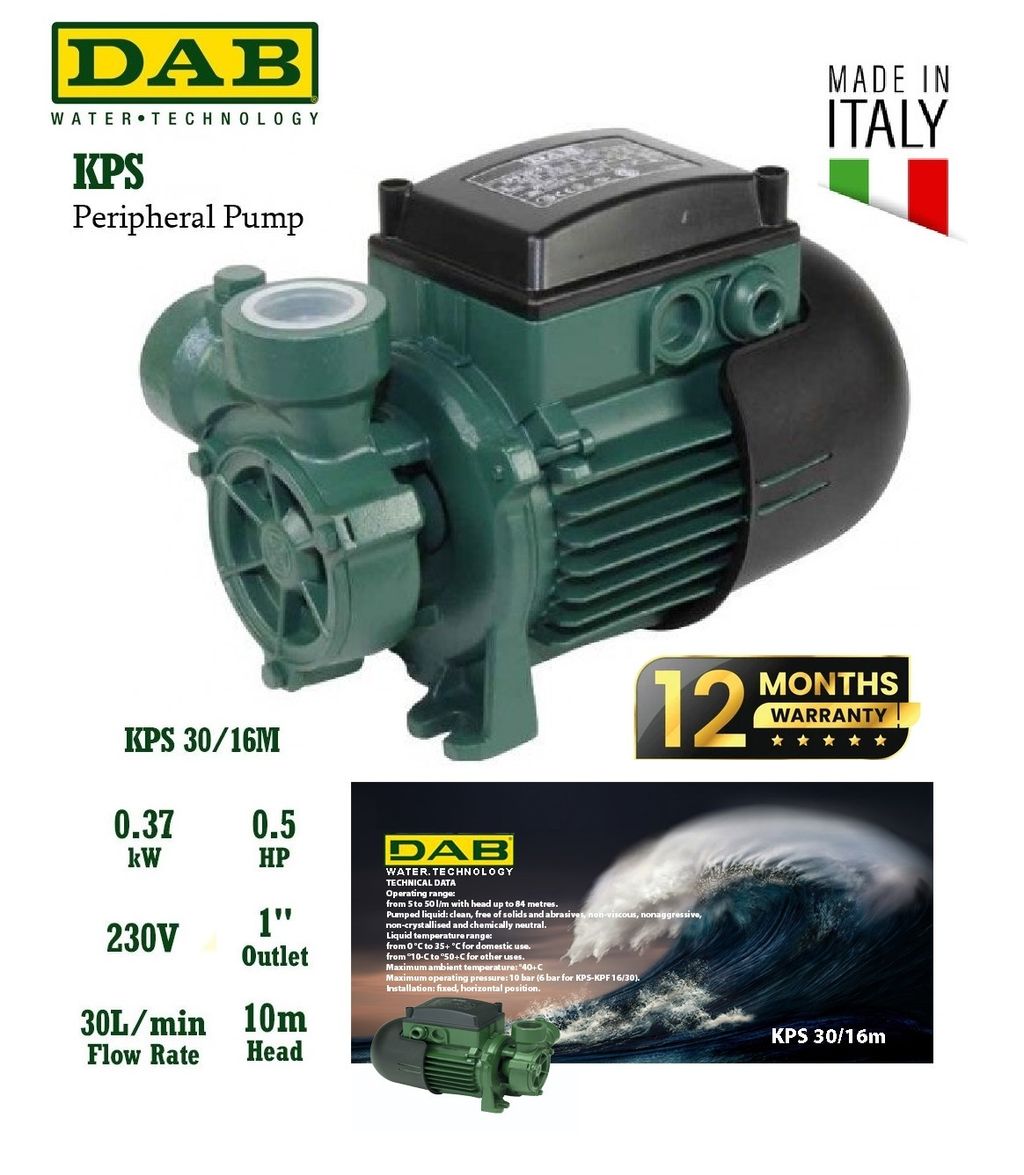

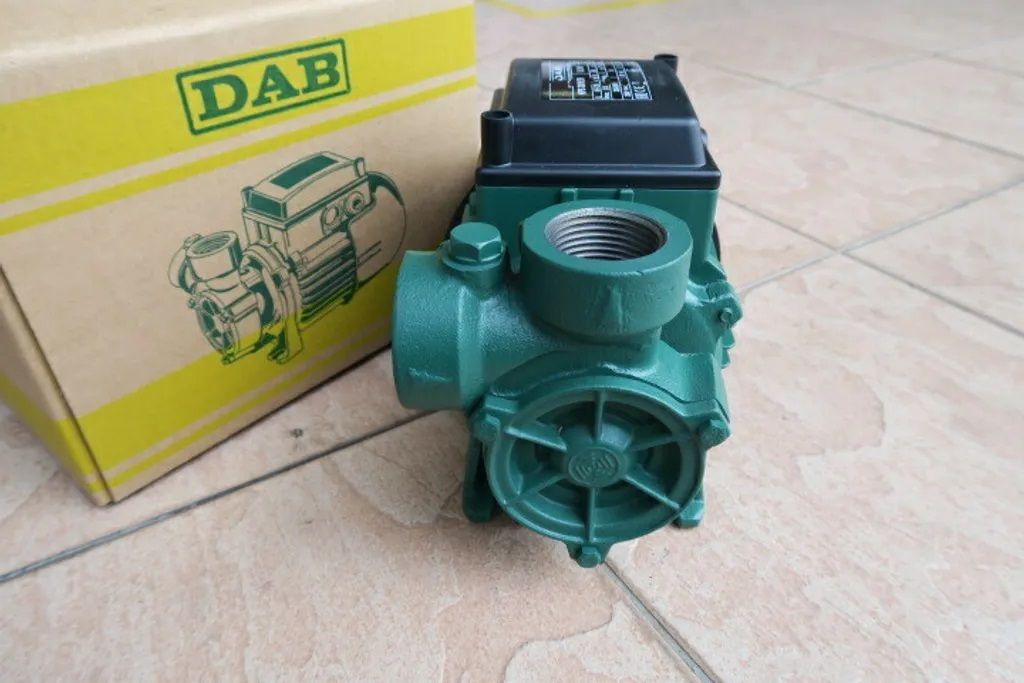

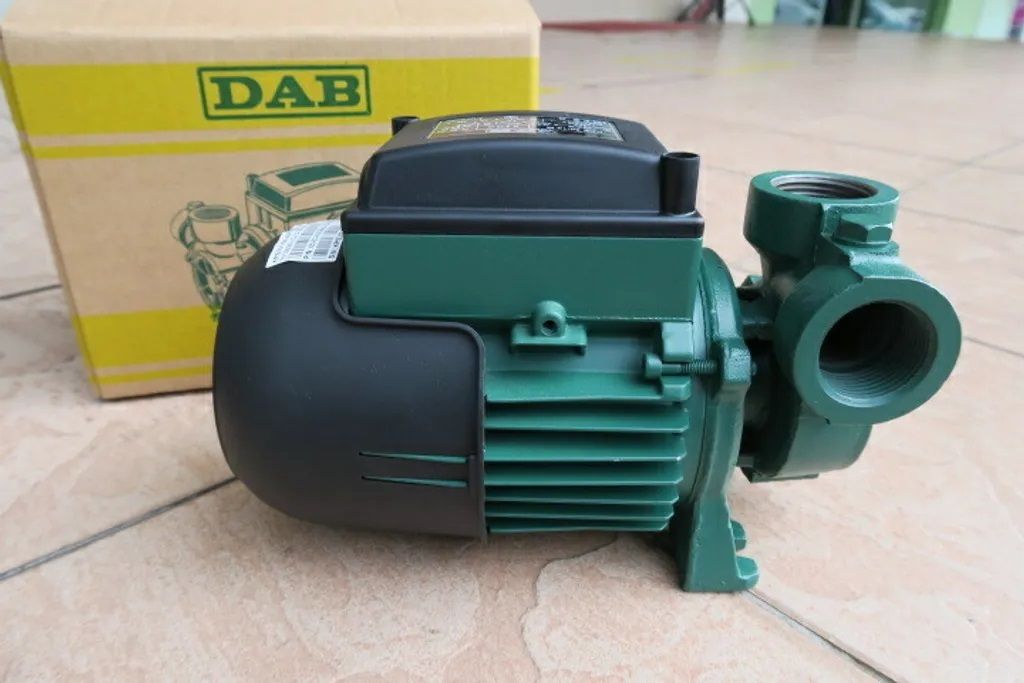

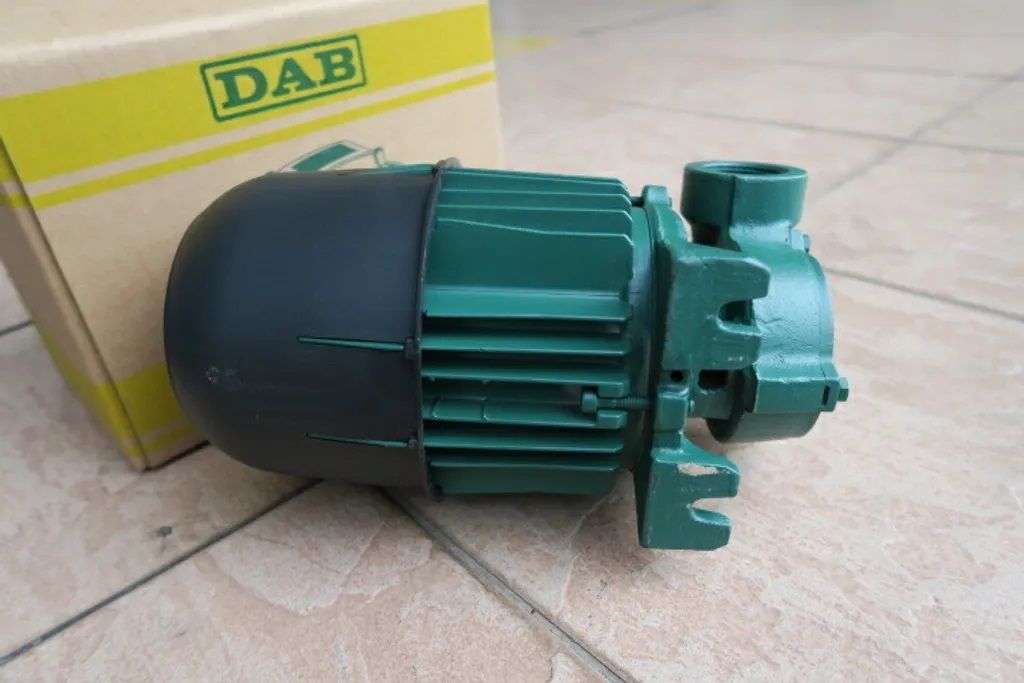

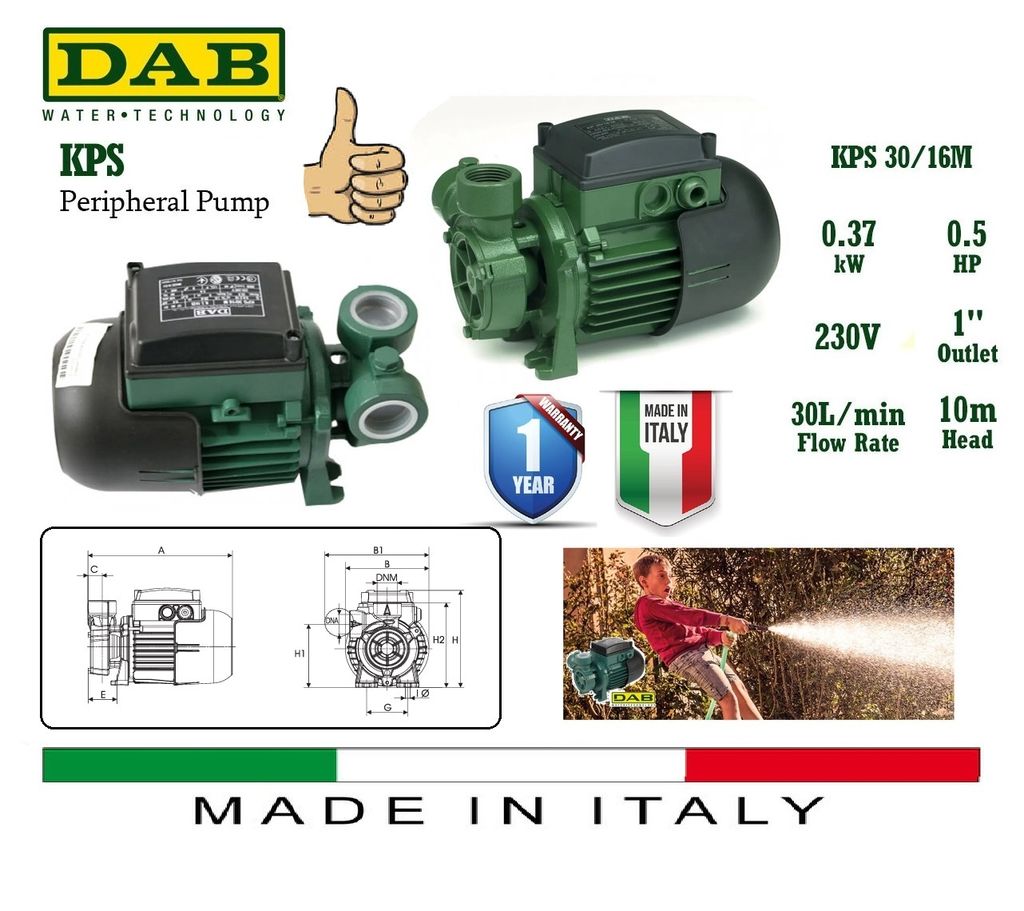

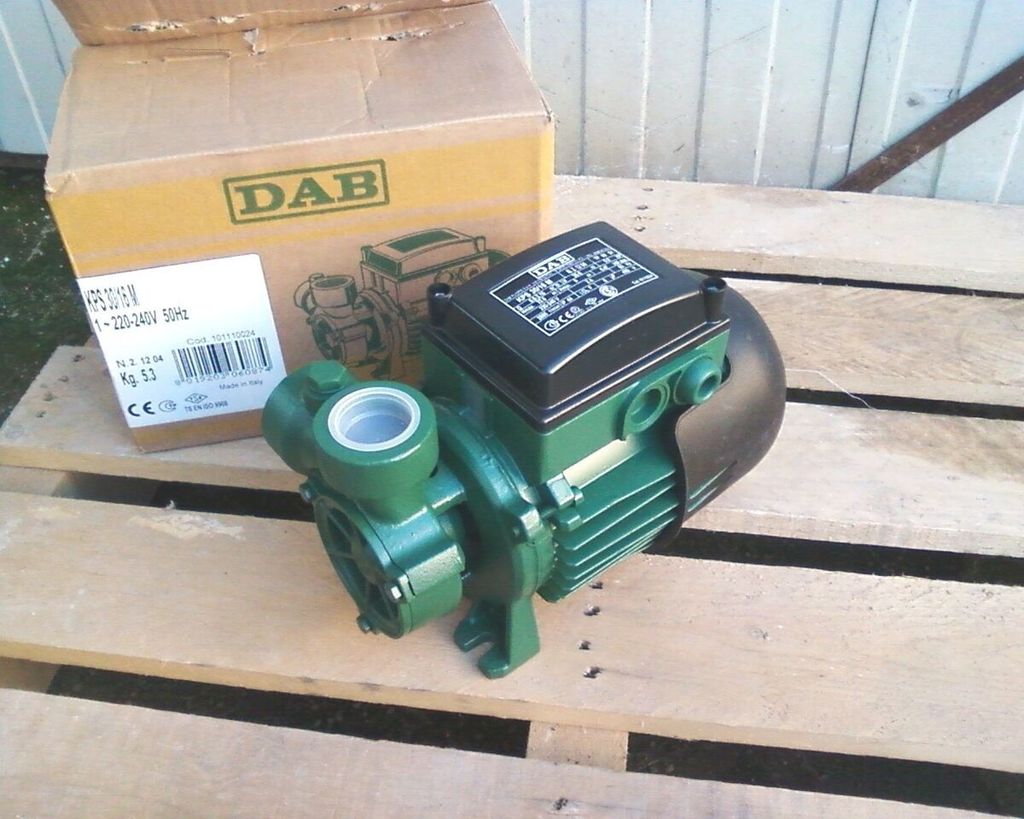

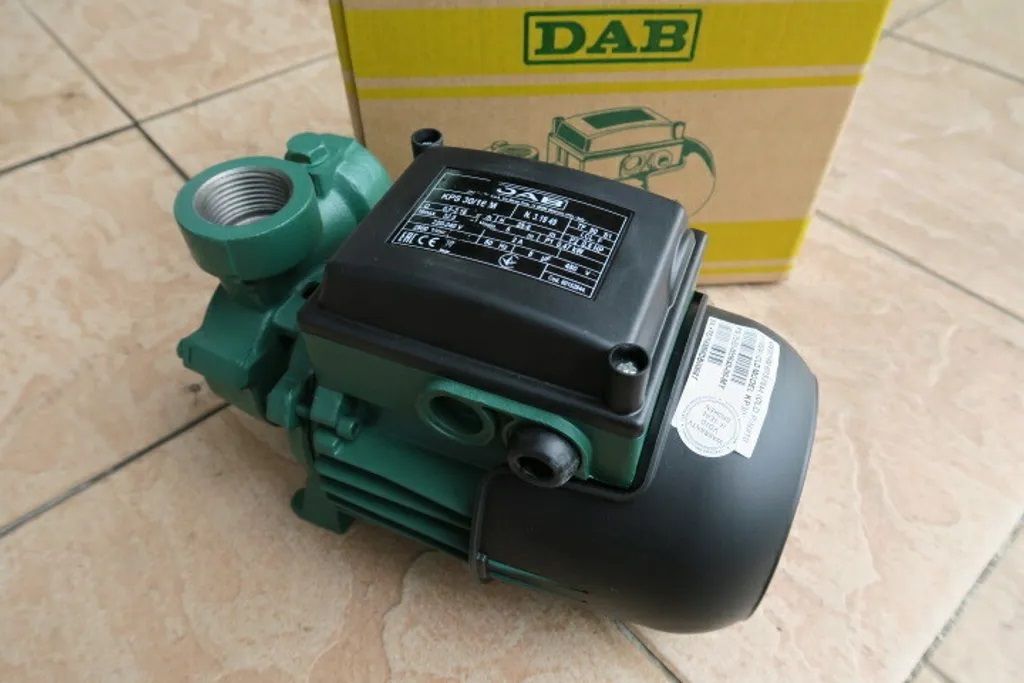

DAB Made in Italy KPS 30/16M (0.5Hp) Peripheral Centrifugal Pump

DAB Made in Italy KPS 30/16M (0.5Hp) Peripheral Centrifugal Pump..

Model KPS 30/16 M

**Applications**

Peripheral centrifugal pump with compact dimensions. Capable of generating high heads and suitable for domestic installations, water supply systems, small gardening applications, draining and filling cisterns, and for light industrial uses, such as feeding pressurized boilers (anti-condensation).

**Features of the pump**

Cast iron support with brass wear disc for KPS 30/16 and KP 38/18.

KPS 30/16 is available on request with bronze pump body and support.

Brass impeller. Carbon / ceramic mechanical seal.

**Materials**

.PUMP BODY - CAST IRON 200 UNI ISO 185

.IMPELLER BRASS - PCU ZN 40 PB2 UNI 5705/65

.SHAFT WITH ROTOR - AISI 416 STAINLESS STEEL X12 CRS 13 UNI 6900/71

.MECHANICAL SEAL - CARBON / CERAMIC

.OR RING - NBR

.COVER - BRASS PCU ZN 40 PB2 UNI 5705/65

**Technical data**

Brand DAB

Model KPS 30/16 M

Product type peripheral electric pump

Voltage 220-240V 50Hz

P1 max 0.47kW

P2 nominal 0.37kW / 0.5HP

Current 2A

Speed 2800rpm

Max head 25m

Max flow 36L/min (2.16m3/hour)

Insulation Class F

Degree of protection IP44

Inlet & discharge 25mm x 25mm / 1" x 1"

Packaging dimensions L259 x W164 x H197mm

Weight 5.4kg

Made in Italy

Warranty 1 years

PRICE RM480.00..(DAB Water Technology)..
