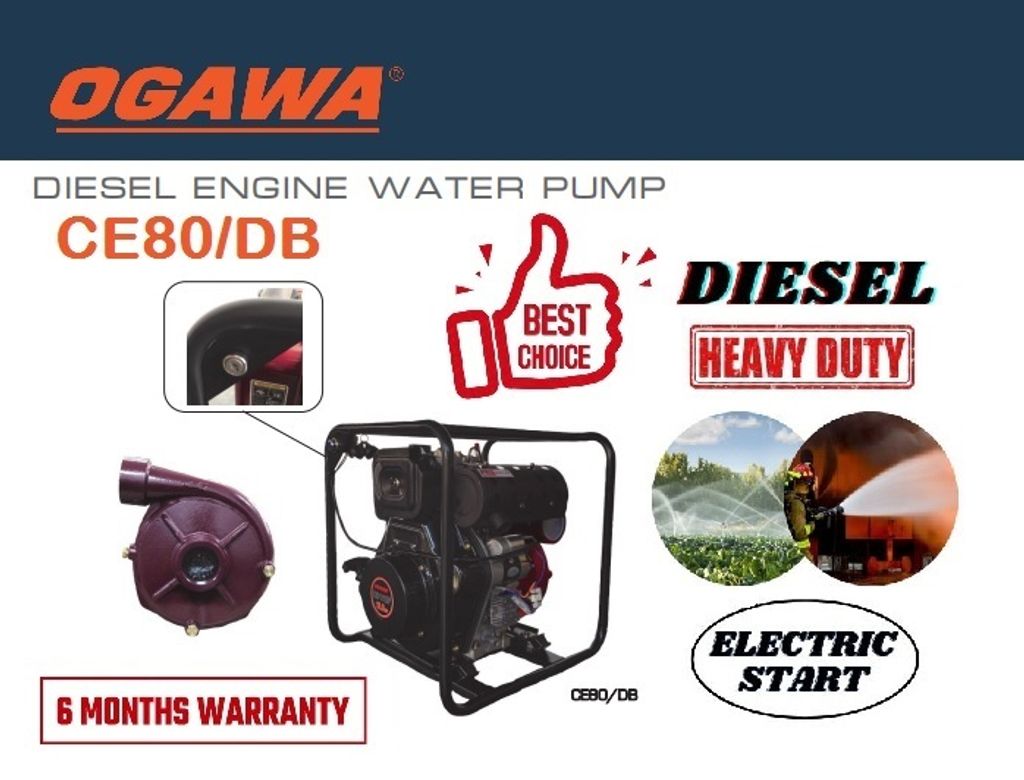

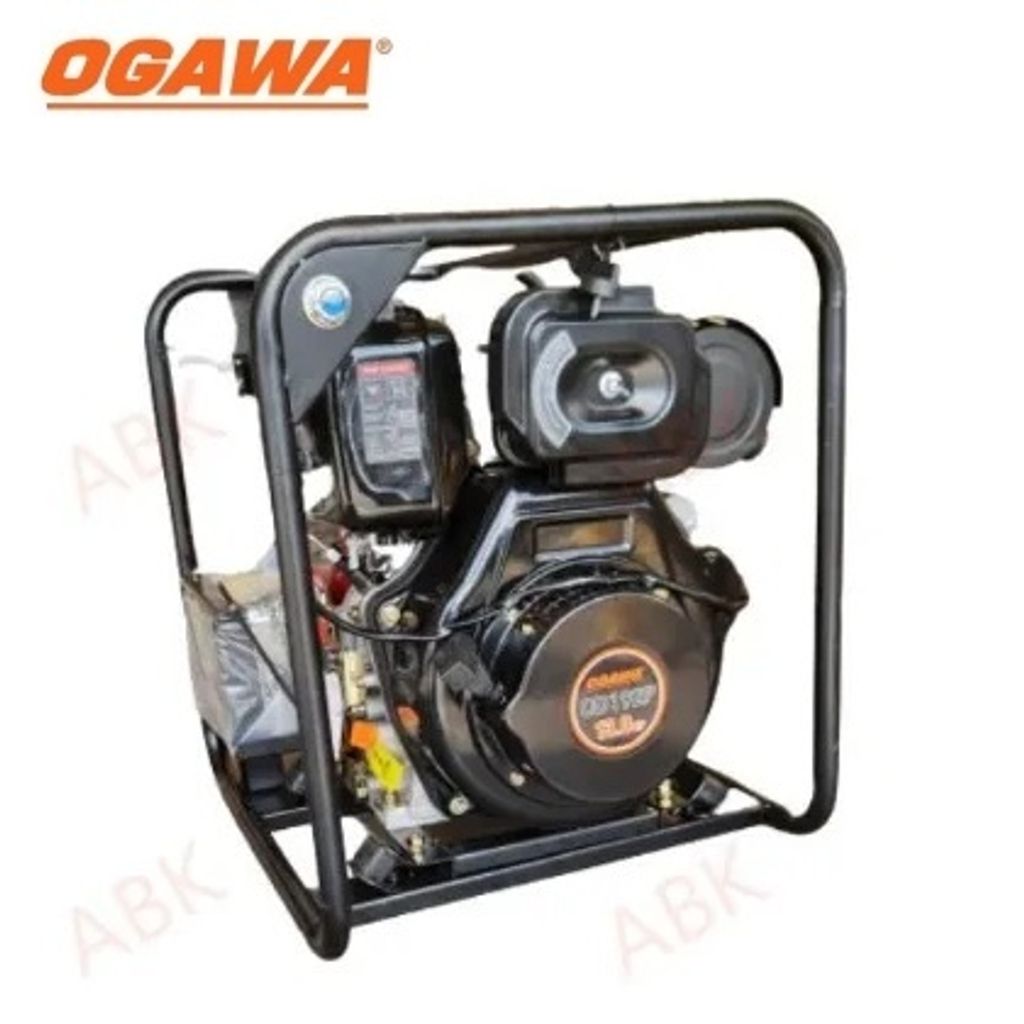

Ogawa 80mm / 3-inch (750L/min) 13.0Hp Diesel Engine Water Pump

Ogawa 80mm / 3-inch (750L/min) 13.0Hp Diesel Engine Water Pump..

Model CE80/DB

Ogawa CE80/DB 3-inch diesel cast iron pumps are famous for their stability, durability and safety. They are ideal for farmland irrigation and general water transfer applications.

Ogawa CE80/DB is a powerful diesel cast iron pump, its head exceeds all other standard clean water pumps, has the most perfect electric start function, easy to start.

The CE80/DB is powered by a rugged and reliable Ogawa 498cc diesel engine with a maximum flow of 45m³/hour and a maximum head of 95m.

The CE80/DB has a 3-inch (80 mm) water inlet and outlet, capable of handling solids up to 8 mm in diameter, which is an impressive size for a cast iron pump like this.

**Specifications**

Brand Ogawa

Model CE80/DB

Type diesel engine water pump

Inlet / outlet diameter 80 x 80mm / 3 x 3-inch

Max. capacity 45m3/hour / 750L/min

Total head 95mtr

Suction head 7mtr

Impeller size 208mm / 8-1/4-inch

Rated output 11.7Hp / 3600rpm

Engine model OG192P

Engine type 4-stroke single cylinder air-cooled diesel engine

Starting system manual recoil / electric key start

Bore x stroke 92 x 75mm

Displacement 498cc

Rated output 8.5Hp / 3600rpm

Max. output 13Hp /3600rpm

Fuel type diesel

Fuel tank volume 5.5-Litre

Lubricant oil capacity 1.8-Litr

Packing size L580 x W530 x H660mm

Gross weight 94kg

Warranty 6 months

PRICE RM2,800.00..(Ogawa Durable Outdoor Power Equipment)..
