Riland ARC 200DT IGBT 30-160A Digital Inverter Welding Machine

RM 440.00

Riland ARC 200DT IGBT 30-160A Digital Inverter Welding Machine..

Model ARC 200DT


The new generation and digital welder

Excellent, professional, affordable, portable, reliable and rugged


**Applications**

Light steel structure, machinery maintenance, sheet metal processing,

mild steel, stainless steel, alloyed steel etc.


**Features**

.Equipped with Riland self-developed RICHI chip and use the 70KHz latest high grade IGBT technology.

.Wide range input voltage 220V +-15%.

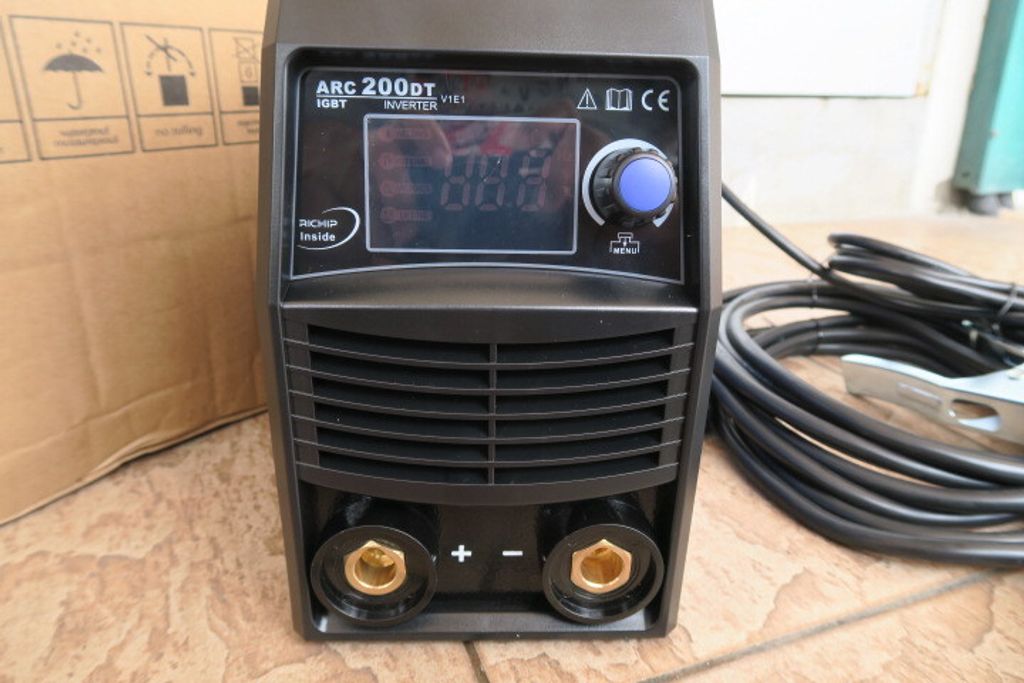

.Segment code screen easy shows and adjust the welding parameter.

.Adopt intelligent MCU control with high reliability, built-in power management system.

.VRD, Hot Start and ARC Force function adjustable, make you enjoy welding with desired welding shape.

.Equipped with an output reactor, it can be welded with acid and basic electrodes, even cellulose electrodes.

.Perfect intelligent protection system : automatic protection of current sudden change, overheating, input voltage fluctuation, etc.

.Non-stop welding for 2.5 or 3.2mm (4.0mm) electrode, for ARC 250DT  even can  welding 4.0mm electrode.

.Generator set user friendly.

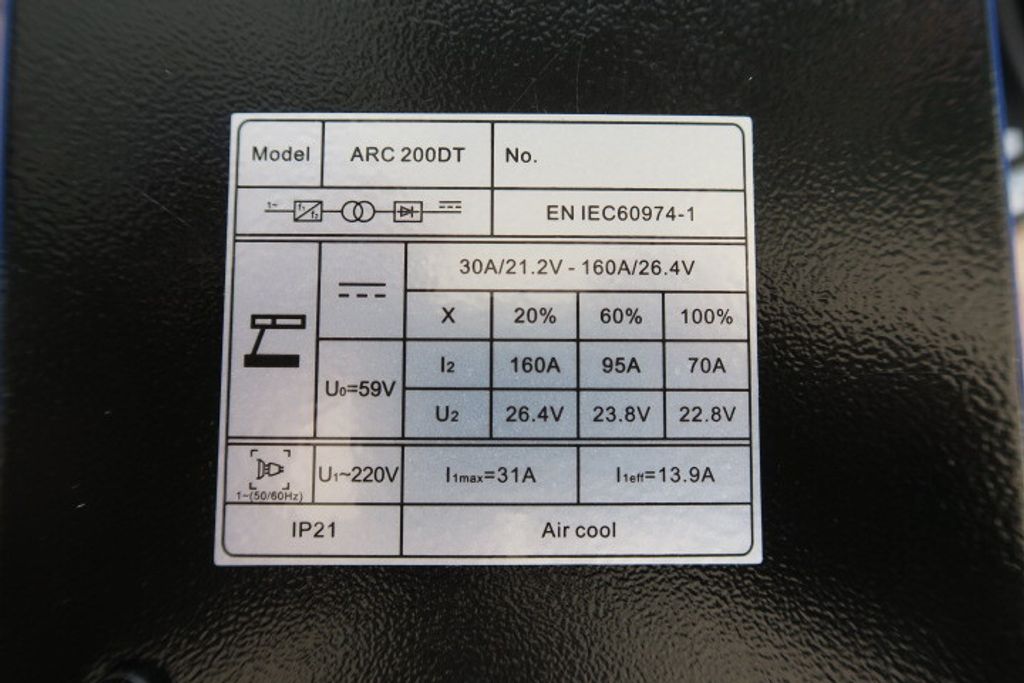

**Specifications**

Brand Riland

Model ARC 200DT

Product type MMA welding machine

Design standard IEC / EN60974-1

Input voltage 1-PH 220V +-15%

Frequency 50/60Hz

Rated max. supply current 31A

Max. effective supply current 13.9A

Rated output current range 30-160A

Rated output voltage range 21.2-26.4V

Rated duty cycle (40°C) 160A/30% / 140A/100%

Duty cycle (25°C) 160A/60%

No-load voltage 59V

Electrode diameter 1.6 ~ 3.2mm

Power factor 0.73

Efficiency 80%

Insulation grade F

Housing protection grade IP 21

Gross weight 5.5kg

Overall dimension 365 x 172 x 320mm

Warranty 24 months

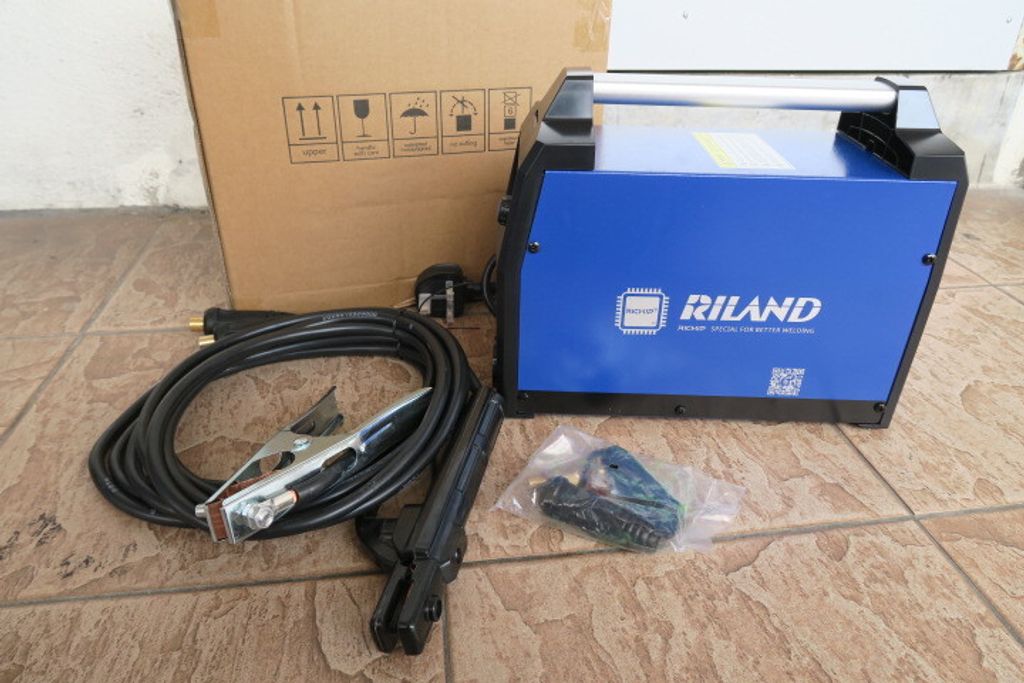

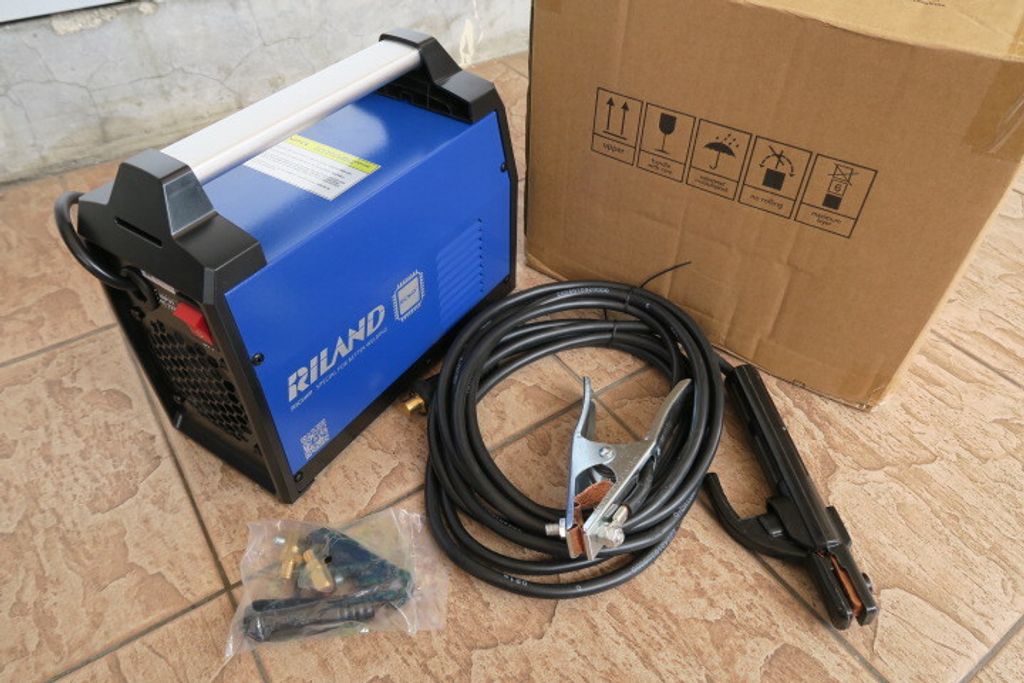

**Standard package include**

.1unit Riland ARC 200DT welding unit with power cable

.1pc Electrode holder with welding cable (3-metre)

.1pc Earth clamp with welding cable (3-metre)

.User manual & carton box
