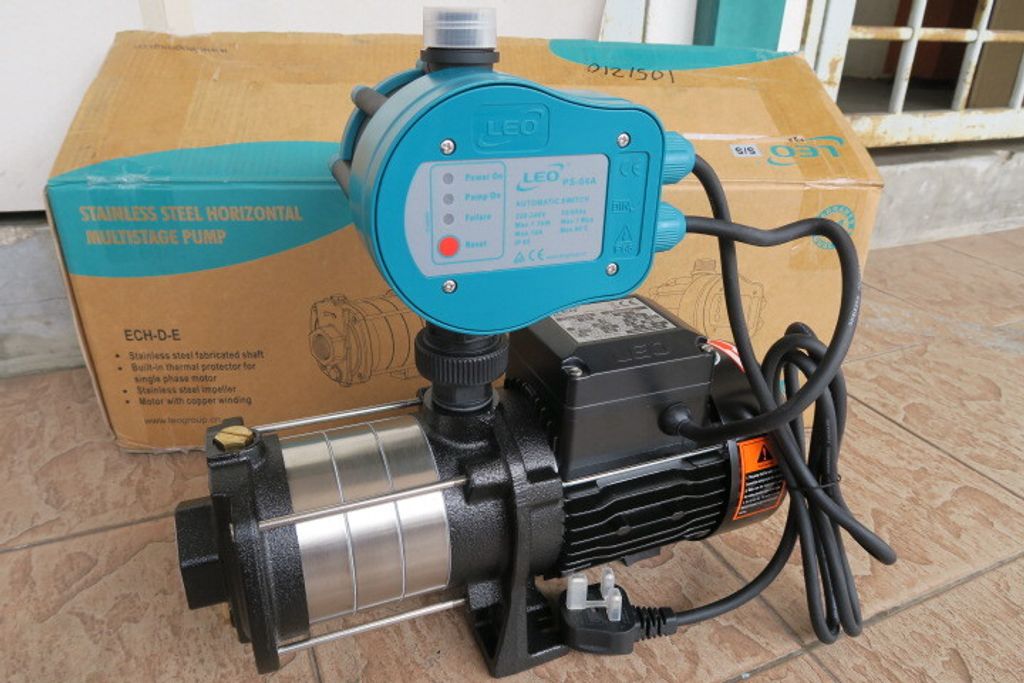

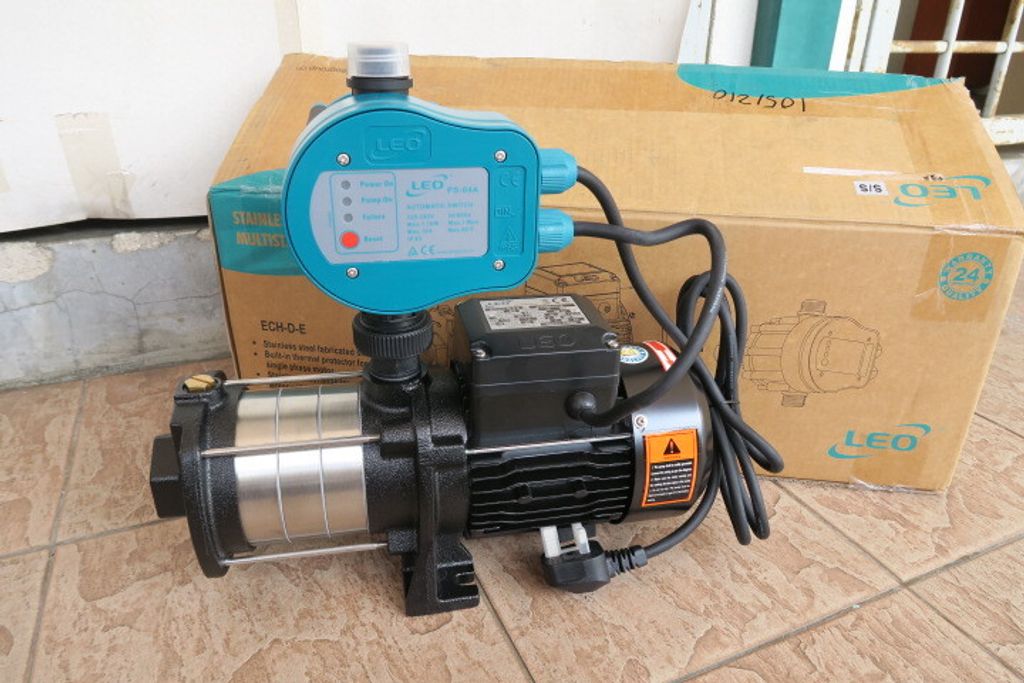

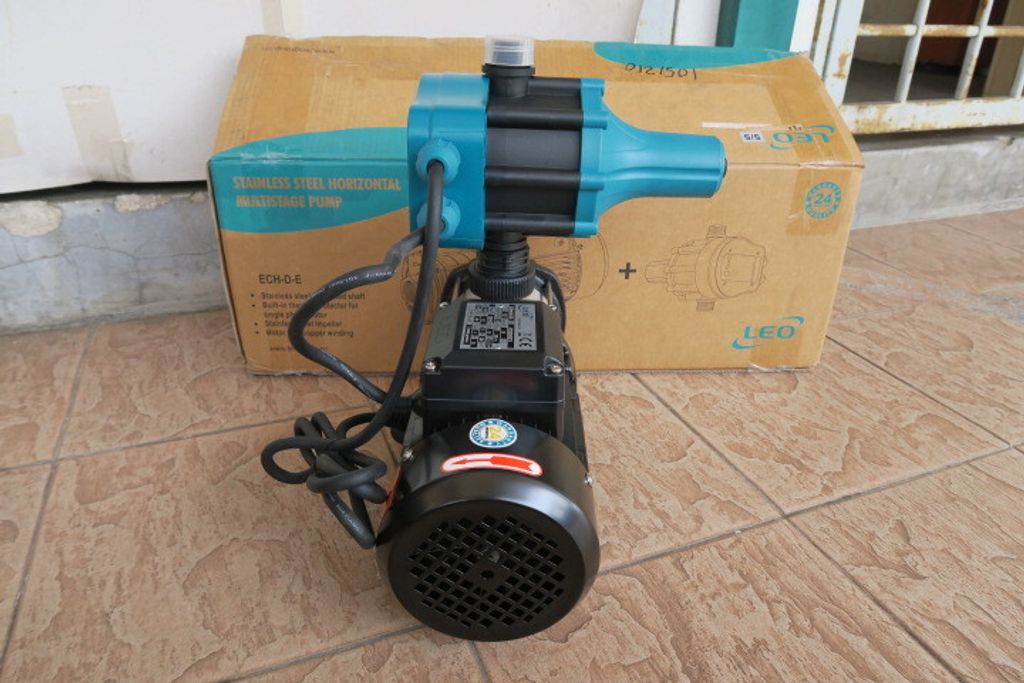

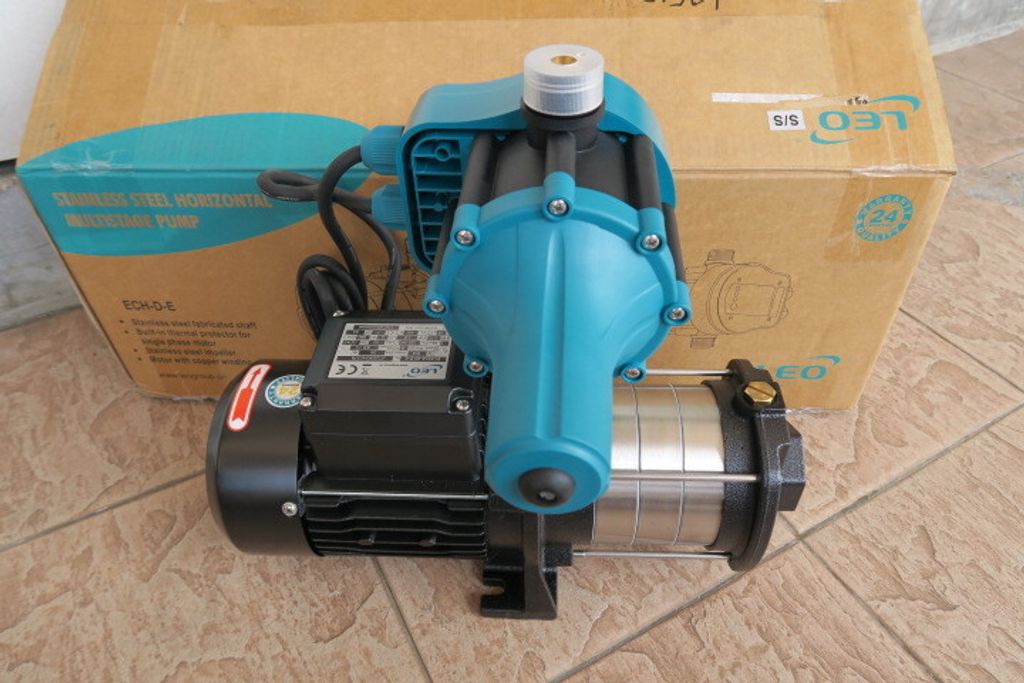

Leo 1.0HP (750W) Auto PC Horizontal Multi-Stage Booster Pump

RM 850.00

Leo 1.0HP (750W) Auto PC Horizontal Multi-Stage Booster Pump..

Model ECHM 4-40 DE


**Application**

The ECH-D cold water pump is applicable to household water supply, equipment support, pipeline pressurization, garden watering, vegetable greenhouse watering, fish farming and poultry raising, industrial and mining, water supply and drainage in high-rise buildings, and central air conditioner systems.

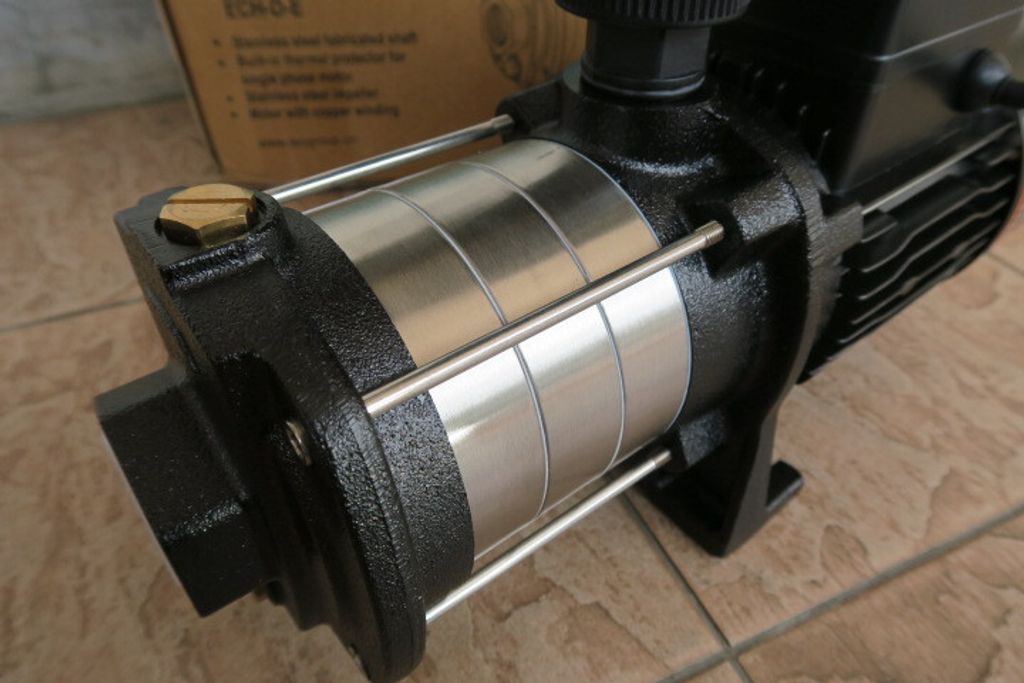

**Pump**

- AISI 304 shaft.

- Max. liquid temperature: +40℃.

- Altitude: up to 1000m.

- Max. Suction: 8m.

- Max. Inlet pressure: limited by max. Operating pressure.

- Max.operation pressure: 8 bar

-Liquid PH value: 6.5-8.5


**Motor**

- Motor with copper winding.

- Built-in thermal protector for single phase motor.

- Insulation class: F.

- Protection class: IP55.

- Max. ambient temperature: +40℃.

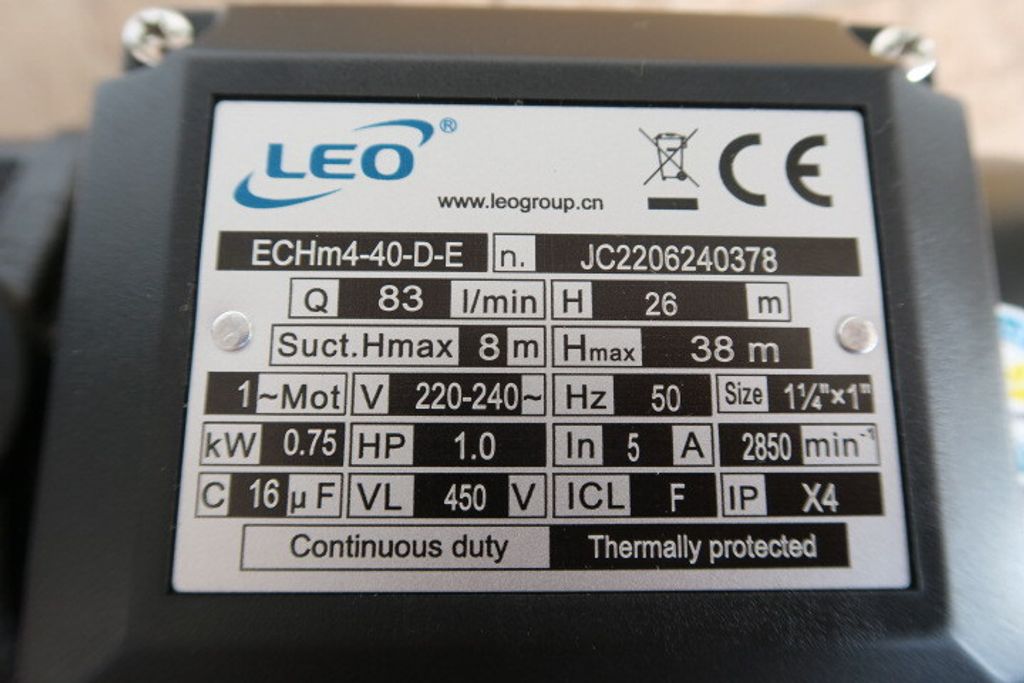

**Specifications**

Brand LEO

Model ECHM 4-40 DE

Voltage 220~240V 50Hz

Power 0.75kW (1.0HP)

Current 5.0A

Rated capacity 83L/min (5.0m3/hour)

Max. capacity 117L/min (7.0m3/hour)

Rated head 26mtr

Max. head 38mtr

Max. suction 8mtr

Max. liquid temperature +40°C

Speed 2850r/min

Capacitor 16uF/450V

Inlet size G1-1/4-inch (32mm)

Outlet size G1-inch (25mm)

Protection rating IPX4

Insulation Class F

Continuous duty and thermally protected

Warranty 24 months


PRICE RM850.00..(Leo Group Pump)..
