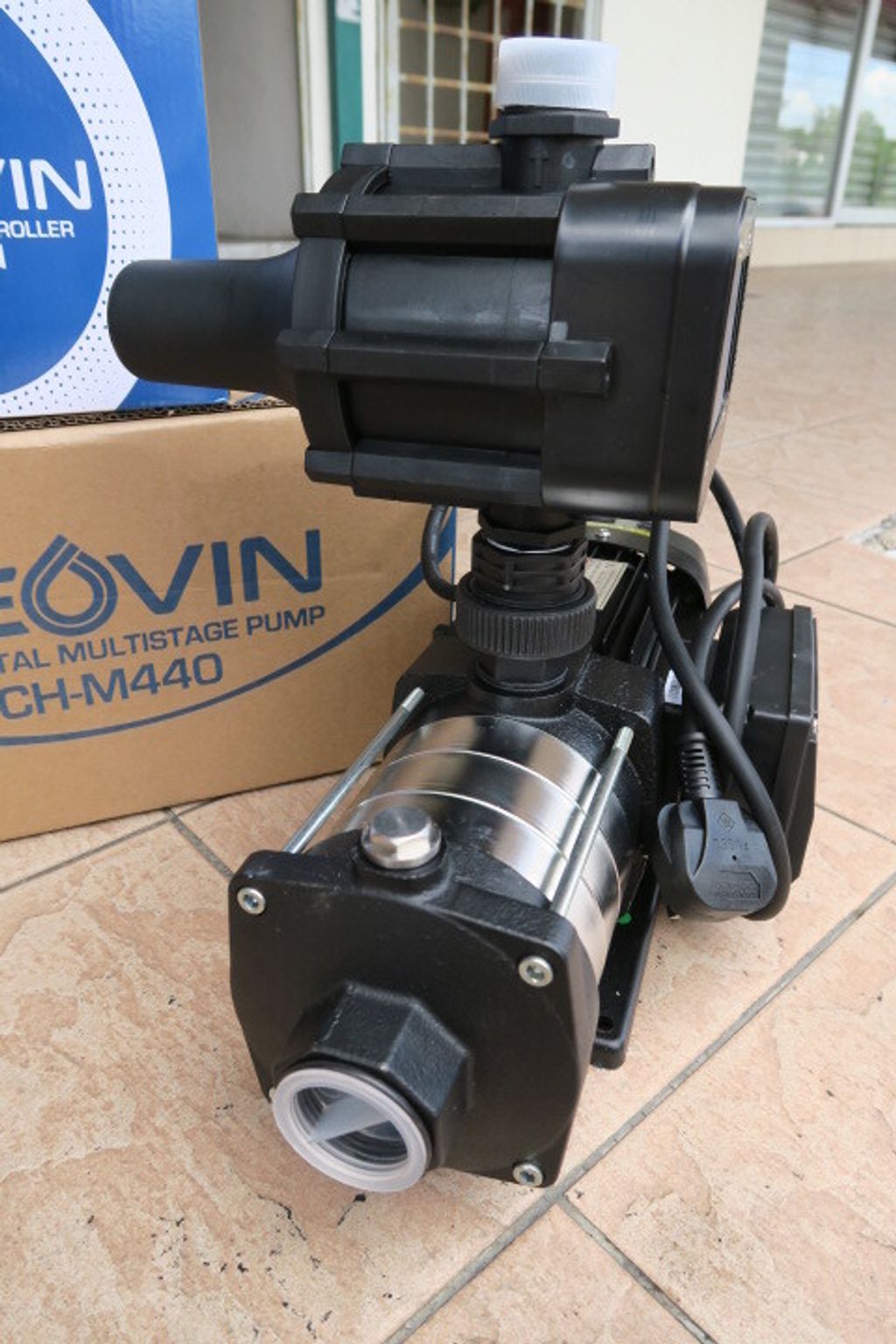

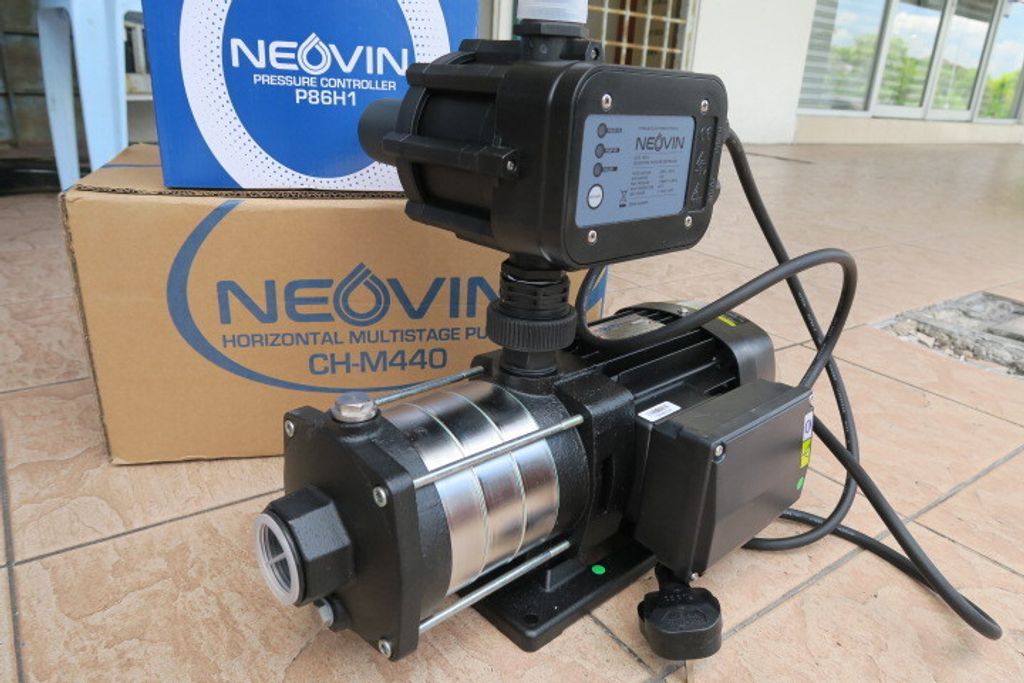

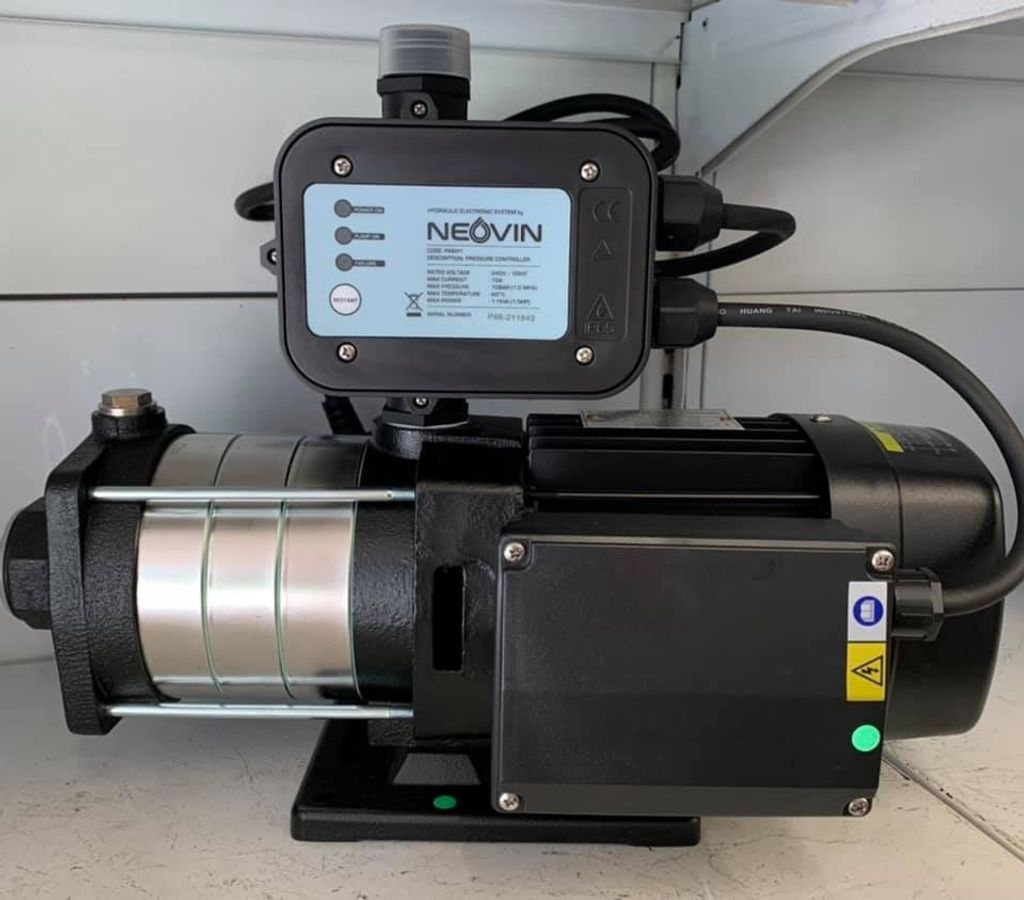

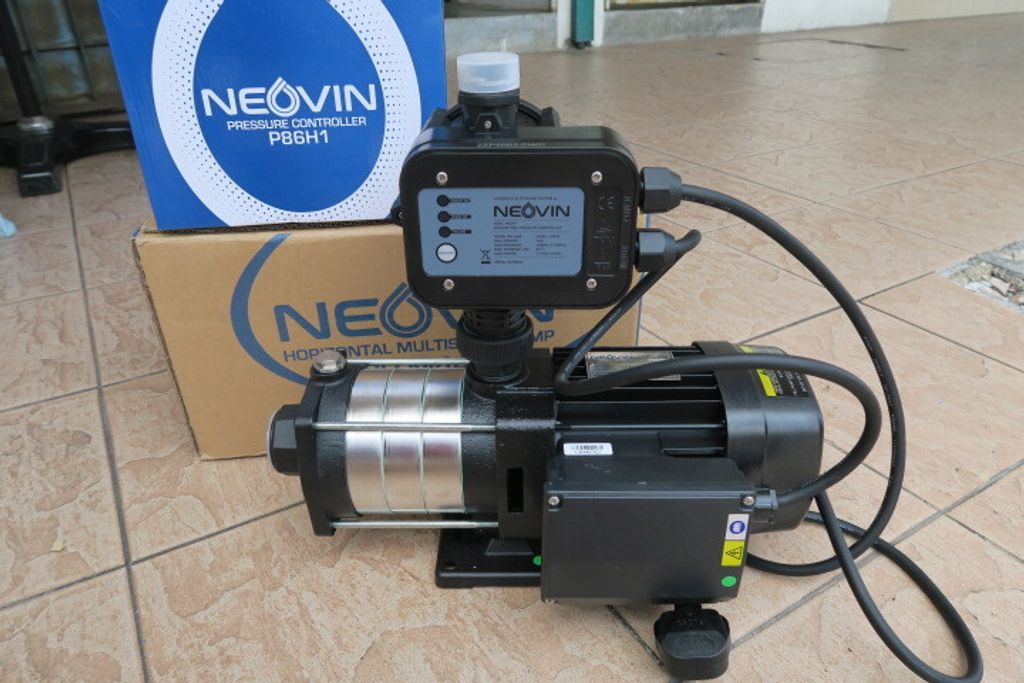

Neovin CH 0.75kW / 1.0Hp PC Horizontal Multi-Stage Booster Pump

RM 870.00

Neovin CH 0.75kW / 1.0Hp PC Horizontal Multi-Stage Booster Pump..

Model CH-M440-PC86

Neovin CH-M Series Horizontal Multistage Centrifugal Pump. CH-M series is segmental multistage stainless steel pump; The material of inlet and outlet is cast iron; the liquid part is made of SUS304,. Under processing of advanced welding equipment, heat treatment, the stress caused by end-cut plate in tension and press forming is eliminated to make in high strength, no deformation, long life, safe and reliable usage; Applied mechanical seal type ensure watertight in long-time continuous operation. The material of frame is aluminum; it is under low-noise and less-vibration and durability. Insulation class F, protection IPX55, continuous duty; Single-phase with thermal protector from T1 to ensure safety and convenience.


.Air-conditioning system

.Water treatment

.Pressure boosting for the water on processing line.

.Heating and cooling water on industrial processing line

.Water supply and pressure boosting (drinking water, weak chlorine water)

.Fire-fighting system

.Convey thin, clean, non-flammable and non-explosive liquid without solid granules and fibers

**Operation conditions**

.Liquid temperature +5C ~ +60°C

.Max ambiance temperature +50°C

.Max pressure 10 bar

.Maximum inlet pressure is limited by the maximum operating pressure

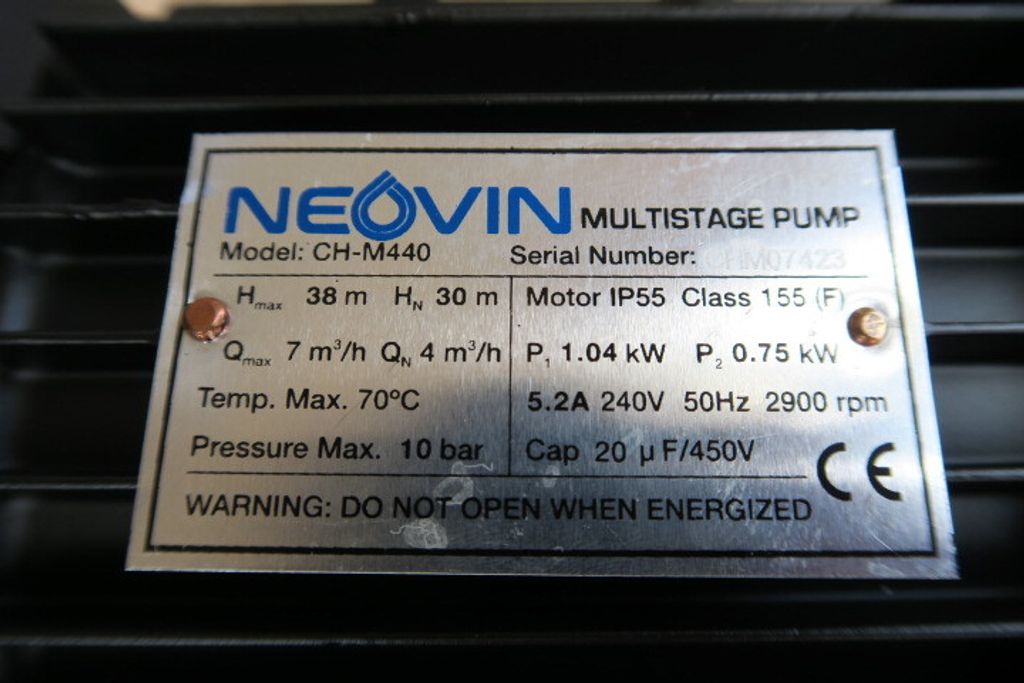

Brand Neovin

Model CH-M440-PC86

Motor power 0.75kW (1.0Hp)

Voltage 240V / 50Hz

Current 5.2A

Phase single

Inlet size 1-1/4″ BSP (F)

Outlet size 1″ BSP (M)

Rated head 30m

Max. head 38m

Rated flow 4.0m3/hour (66L/min)

Max. flow 7.0m3/hour (116L/min)

Speed 2900rpm

Max. temperature 70°C

Max. pressure 10 bar

Motor protection IP55

Insulation Class 155 (F)

Capacitors 20uF/450V

Warranty 12 months

PRICE RM870.00..(Neovin the pump expert)..
